Foundation Slab - Leveled and Formed
Photo Details
- Date: October 20, 2025
- Time: 2:12 PM EDT
- Weather: Clear skies, 59°F. Ideal conditions for foundation work and photography.
- Phase: Foundation slab preparation
- Location: 309 E. 7th St., Clare, MI
Description

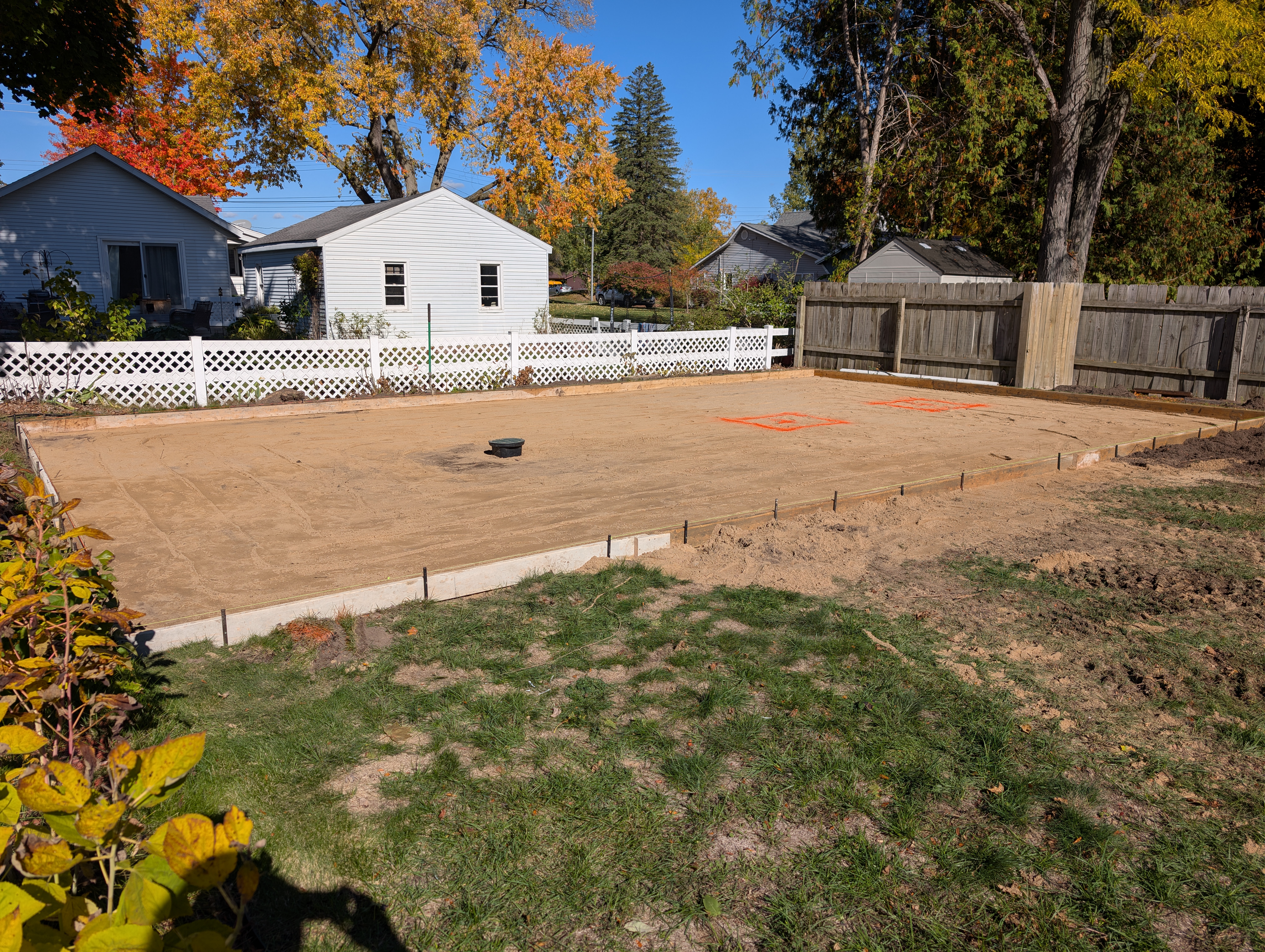

This image captures the garage foundation after excavation, leveling, and forming. The site is prepared for concrete placement with forms installed around the perimeter.
Visible Elements
- Leveled Foundation Bed: Smooth, compacted sand/gravel base ready for concrete
- Perimeter Forms: Wooden forms installed around the edges with stakes for support
- Orange Marking Spray: Construction marking visible on the surface indicating locations for thickened concrete pads (future 2-post car lift foundation)
- Site Boundaries:
- White lattice fence on the left (neighbor’s property line)
- Natural wood fence on the right side
- Shed visible in right background
- Existing House: White house visible in the left background
- Fall Setting: Clear blue sky with autumn-colored trees
Construction Details
The foundation bed appears to be the prepared surface for the 24’ x 40’ garage slab specified in the contract. The forms are set to create the perimeter of the 4” concrete floor with the rat wall system.
Technical Observations
- Foundation appears level and properly graded
- Forms are straight and properly staked
- Orange markings indicate locations for thickened concrete pads for the future 2-post car lift
- These areas will not receive Creatherm insulation (visible in later photos as square openings)
- Allows for thicker concrete to support lift mounting bolts
- PEX radiant heating loops will be routed around these pads to prevent damage during lift installation
Related Documents
- Hershberger’s Contract - Specifies 8” x 24” deep concrete rat wall with 9” foam frost protection, 4” concrete floor
- Garage HVAC and Heating - In-floor heating design
