Outlet Pair Pre-Assembled with WAGO Connectors (Bench Sub-Assembly)

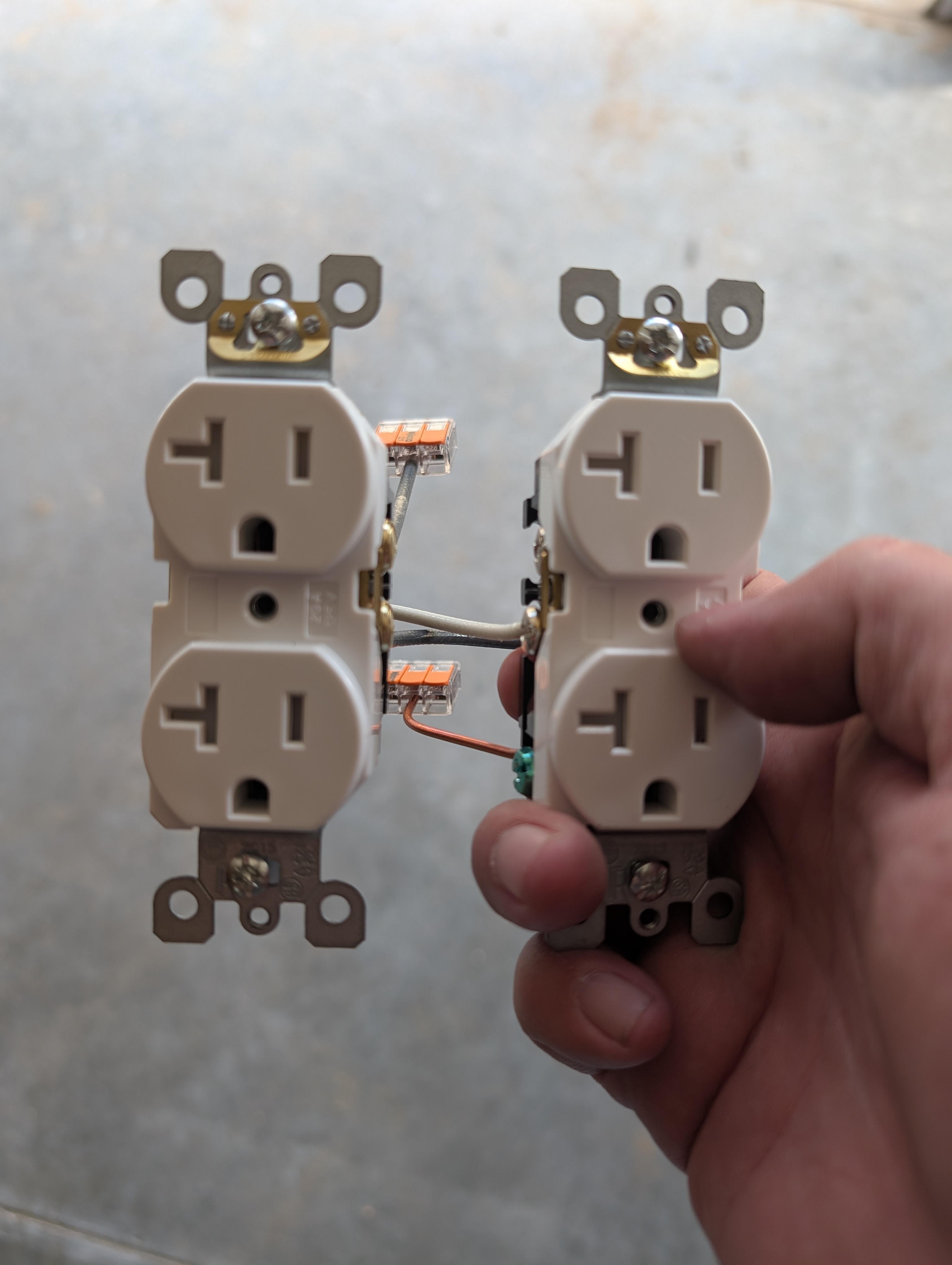

Two 20A duplex outlets held side-by-side, wired together with WAGO 221 lever-nuts on each conductor — neutral, hot, and ground bridged between the two devices

Photo Details

  • Date: May 25, 2026
  • Time: 4:54 PM EDT
  • Phase: Phase 1 — 120V rough-in (DIY)
  • Location: On the slab outside the rear-wall boxes
  • Subject: Owner-built outlet sub-assembly: 2-gang’s worth of devices wired together outside the box, ready to push in as a unit

Description

This is the bench sub-assembly approach that made the day’s outlet work tractable. Each 2-gang outlet location gets two 20A duplex receptacles wired together outside the box on the workbench — hot/neutral/ground bridged between devices using WAGO 221 lever-nut connectors. The completed sub-assembly is then dropped into the box and the WAGOs accept the incoming and outgoing romex pigtails for chain wiring.

Why this works: Outlet connections are dramatically easier to make on a flat workbench than reaching into a 23-cubic-inch plastic box with both hands. The owner built the assemblies (cutting wires, stripping, seating in WAGOs) and Uncle Ed installed them into the boxes — a clean labor split that doubled throughput.

Visible Elements

  • 2× 20A duplex receptacles (back-to-back, hot terminals facing each other — note the T-slot neutral indicating 20A rating)
  • WAGO 221 lever-nuts: 3-port models — one each for hot (black), neutral (white/grey), ground (green). Each WAGO accepts the upstream chain pigtail, the device pigtail to outlet A, and the device pigtail to outlet B.
  • Pigtail leads between devices and WAGOs cut short for in-box neatness
  • Mounting ears still attached top and bottom on both devices

Why This Photo

Documents the outlet sub-assembly technique used throughout Phase 1. The WAGO-based approach is faster, cleaner, and more serviceable than backstabbing or side-screw daisy-chaining, and gives the chain a single point to break for troubleshooting. The “pre-assemble on the bench” workflow is the kind of process detail worth preserving for the next round of outlet work (west wall + workbench circuits still to come once wire is pulled to the panel).
