2026-05-26 - Eaton Panel With 50A Generator and New Branch Breakers

3 min read

Eaton Panel — 50A 240V Generator Connection & New Branch Breaker Detail

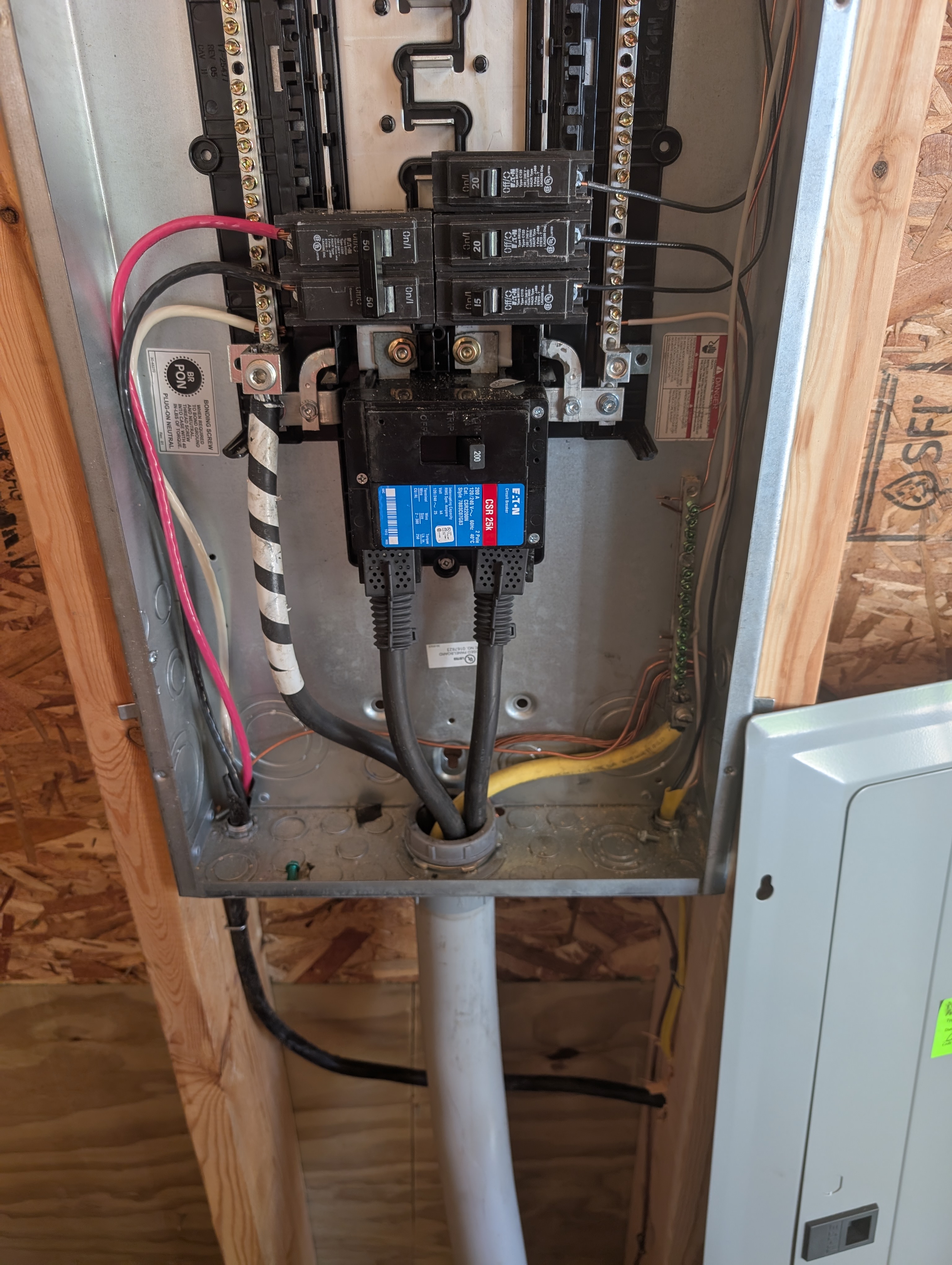

Close interior view of the Eaton 200A panel with the dead-front off; 2-pole 50A breaker on the left with thick red and white feeders going off-panel to the generator inlet; black 200A main breaker block at center with thick output cables exiting the bottom; smaller 1-pole branch breakers across the bus stack including the new 20A BR for the rear-wall circuit; yellow Romex emerging through the bottom of the panel cabinet; OSB sheathing behind; gray PVC conduit and the side of an adjacent panel visible at the bottom right

Photo Details

  • Date: May 26, 2026
  • Time: 11:59 AM EDT
  • Weather: Clear, 82°F, 38% humidity, 9 mph SW winds.
  • Phase: Phase 1 — 120V rough-in (DIY) — morning-after documentation
  • Location: Garage Eaton 200A panel interior
  • Subject: Panel detail showing (1) the 50A 240V generator-inlet backfeed breaker (SLS-installed), (2) the Eaton 200A main, (3) the new 20A BR branch breaker added 2026-05-25 for the rear-wall outlet circuit

Description

Annotated reference of the current state of the garage panel after yesterday’s first DIY branch breaker was landed:

  • 50A 2-pole breaker (left side of frame) — the generator inlet backfeed installed by SLS Electric in March 2026 alongside the panel. The red + white conductors run to the Generlink-style inlet on the exterior of the garage. This breaker is interlocked with the main per the generator-interlock kit so the inlet can never be backfed while the utility main is closed.
  • Eaton CSR 200 main breaker (center, black block) — the 200A main, energized by SLS at the panel energization milestone.
  • Small 1-pole BR-series breakers (top of frame) — including the new 20A BR breaker added 2026-05-25 for the rear-wall outlet chain (the first owner-DIY breaker landed on this panel). Adjacent breakers are the SLS-installed circuits from March/April 2026 (interior GFCI receptacle by panel, exterior soffit-light + receptacle circuits).
  • Yellow 12-2 NM-B romex exiting the bottom of the panel cabinet — feeder for the new rear-wall circuit.

Visible Elements

  • 50A 2-pole generator-inlet backfeed breaker with red + white inlet feeders
  • Generator interlock plate (small mechanical interlock between the main and the 50A — keeps them from both being closed)
  • Eaton CSR 200 main breaker — 200A
  • New 20A BR branch breaker for rear-wall outlet circuit (1-pole, top group)
  • SLS-installed branch breakers — interior GFCI by panel, exterior soffit lights, exterior receptacle
  • Yellow 12-2 NM-B romex through bottom cable entry
  • OSB sheathing behind the panel
  • Adjacent panel (loft 100A subpanel — not yet energized; future install) visible at lower right

Why This Photo

The single reference photo for the panel state after the first DIY-installed breaker. Future maintenance / troubleshooting can use this to confirm:

  1. Which breaker is the generator inlet (50A 2-pole, left) — important for transfer-switch operation during a power outage
  2. Where the rear-wall circuit’s breaker sits on the bus (top group)
  3. That the interlock between the main and the 50A backfeed is in place and engaged
  4. Cable entries used vs. still available for the remaining perimeter circuits (west wall, north wall workbench-height fed circuit when separated, east wall, 240V lift circuit, etc.)

Labels are not yet applied — the user plans to use sharpie to mark each Romex at the panel within a day or two, then proper printed labels before insulation goes in (see To-Do).
