Pre-Assembled Receptacle Modules with Wago Connectors
.jpg){kind=tracking}
Photo Details
- Date: June 8, 2026
- Time: 12:28 PM EDT
- Phase: Electrical rough-in / device prep
- Location: 309 E. 7th St., Clare, MI — interior work table
- View: Top-down on the bench with the staged receptacle assemblies
Description

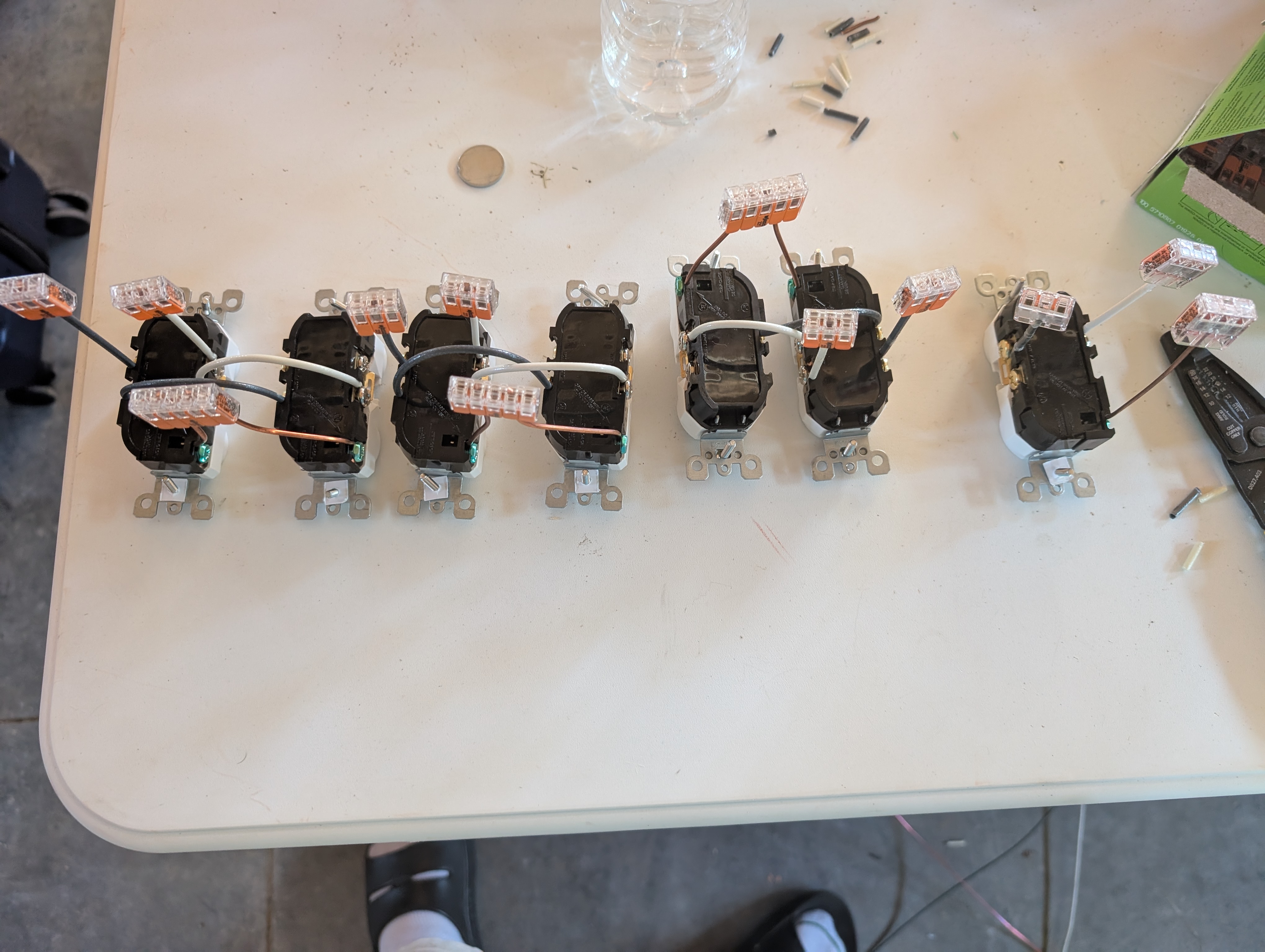

The bench pre-assembly station where receptacles are wired up before going into the boxes — a workflow that keeps in-box work fast: drop the module in and connect it into the chain. On the table:
- Three dual-gang outlet assemblies — each a pair of 20A duplex receptacles pre-wired with WAGO 221 lever-nut pigtails (hot / neutral / ground), ready to chain in the 2-gang boxes.
- One single-outlet assembly (far right) — staged for the Bay 3 ceiling box.
This is the practical execution of the project’s Wago-exclusive splice plan (lever-nuts for the vast majority of splices — faster, more reliable, easier to troubleshoot than twist-on nuts), documented in the materials order. Pre-building the Wago pigtails on the bench means each box just gets the feed/branch cables landed into the lever-nuts.
Visible Elements
- 3× dual-gang receptacle modules with WAGO 221 lever-nuts and pigtail leads
- 1× single duplex module (right) for the Bay 3 ceiling box
- Devices: white/ivory 20A spec-grade duplex receptacles
- Tools/parts: wire stripper, device packaging, spare WAGO connectors and wire offcuts, a magnet on the table
