Exterior Slab Insulation and Fiberglass Rebar - Aerial View 3
Photo Details
- Date: October 29, 2025
- Weather: Clear skies, 45-55°F. Excellent conditions for outdoor prep work.
- Phase: Foundation - Exterior slab insulation and fiberglass rebar installation
- Location: 309 E. 7th St., Clare, MI
- View: Aerial drone view
- Equipment: DJI Phantom 4 Pro
Description

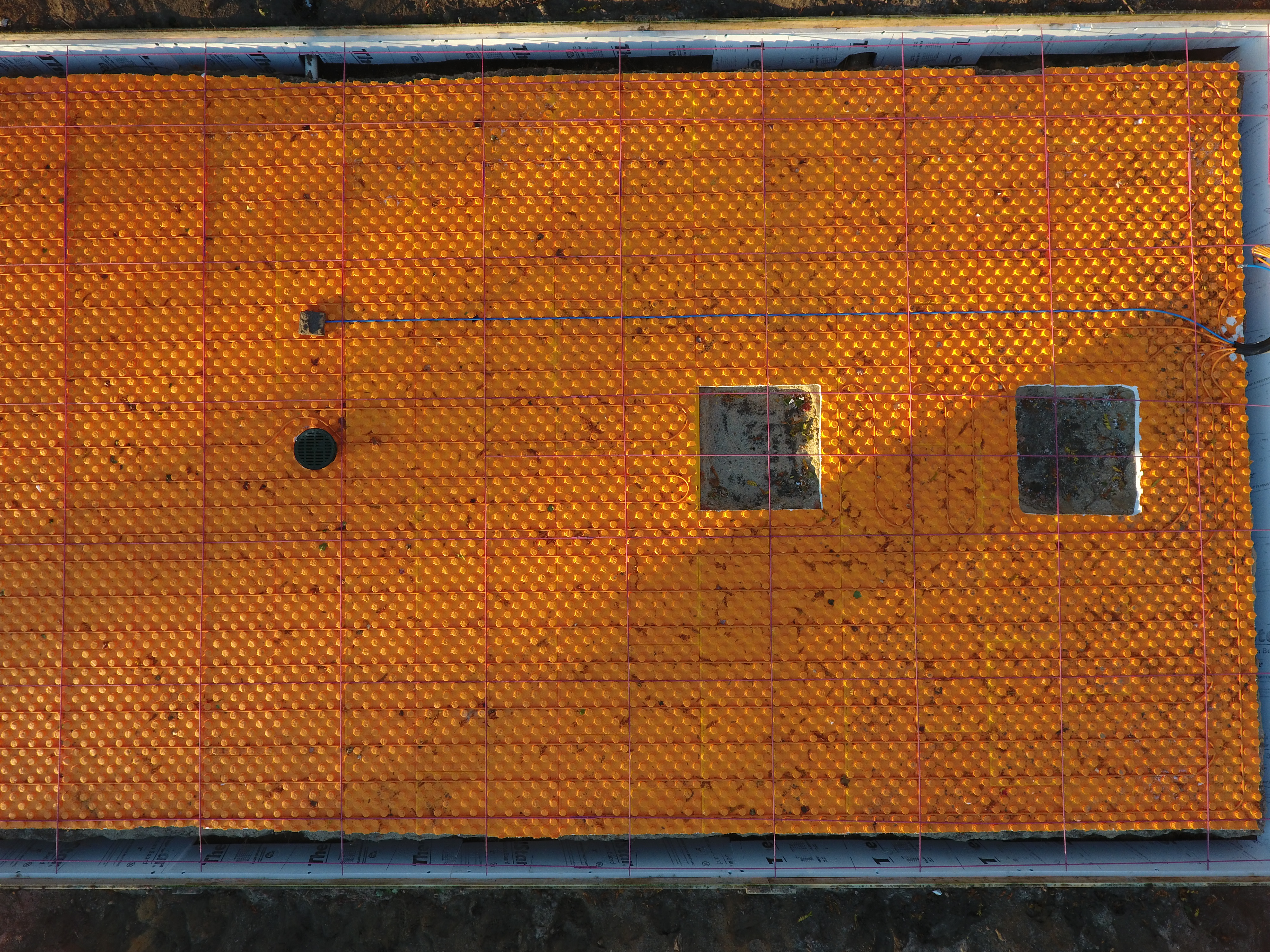

This aerial perspective captures the exterior slab insulation and fiberglass rebar installation from a different angle, highlighting the comprehensive foundation preparation system.
Visible Elements
- Perimeter Insulation:
- Bright orange foam insulation panels around entire foundation edge
- Creates thermal break between heated interior and exterior environment
- Extends outward from foundation forms
- Essential for energy efficiency and frost protection
- Fiberglass Reinforcement:
- Dense grid pattern of fiberglass rebar throughout slab area
- Uniform spacing and professional installation
- Superior corrosion resistance compared to steel
- Properly elevated above base insulation layer
- Foundation Components:
- Wooden perimeter forms holding shape
- Orange Creatherm insulation as base layer
- Thickened pad openings for car lift foundation
- PEX radiant heating loops visible beneath rebar
- Site Preparation:
- Clean, organized work area
- Excavated perimeter for proper drainage
- Ready for final inspection phase
Construction Stage
Advanced foundation preparation documented:
- ✓ Under-slab Creatherm insulation complete
- ✓ Radiant heating system installed
- ✓ Utility conduits and sensors in place
- ✓ Exterior perimeter insulation installed
- ✓ Fiberglass rebar grid complete
- Awaiting: Final inspection and concrete delivery
