Exterior Slab Insulation and Fiberglass Rebar - Aerial View 4
Photo Details
- Date: October 29, 2025
- Weather: Clear skies, 45-55°F. Excellent conditions for outdoor prep work.
- Phase: Foundation - Exterior slab insulation and fiberglass rebar installation
- Location: 309 E. 7th St., Clare, MI
- View: Aerial drone view
- Equipment: DJI Phantom 4 Pro
Description

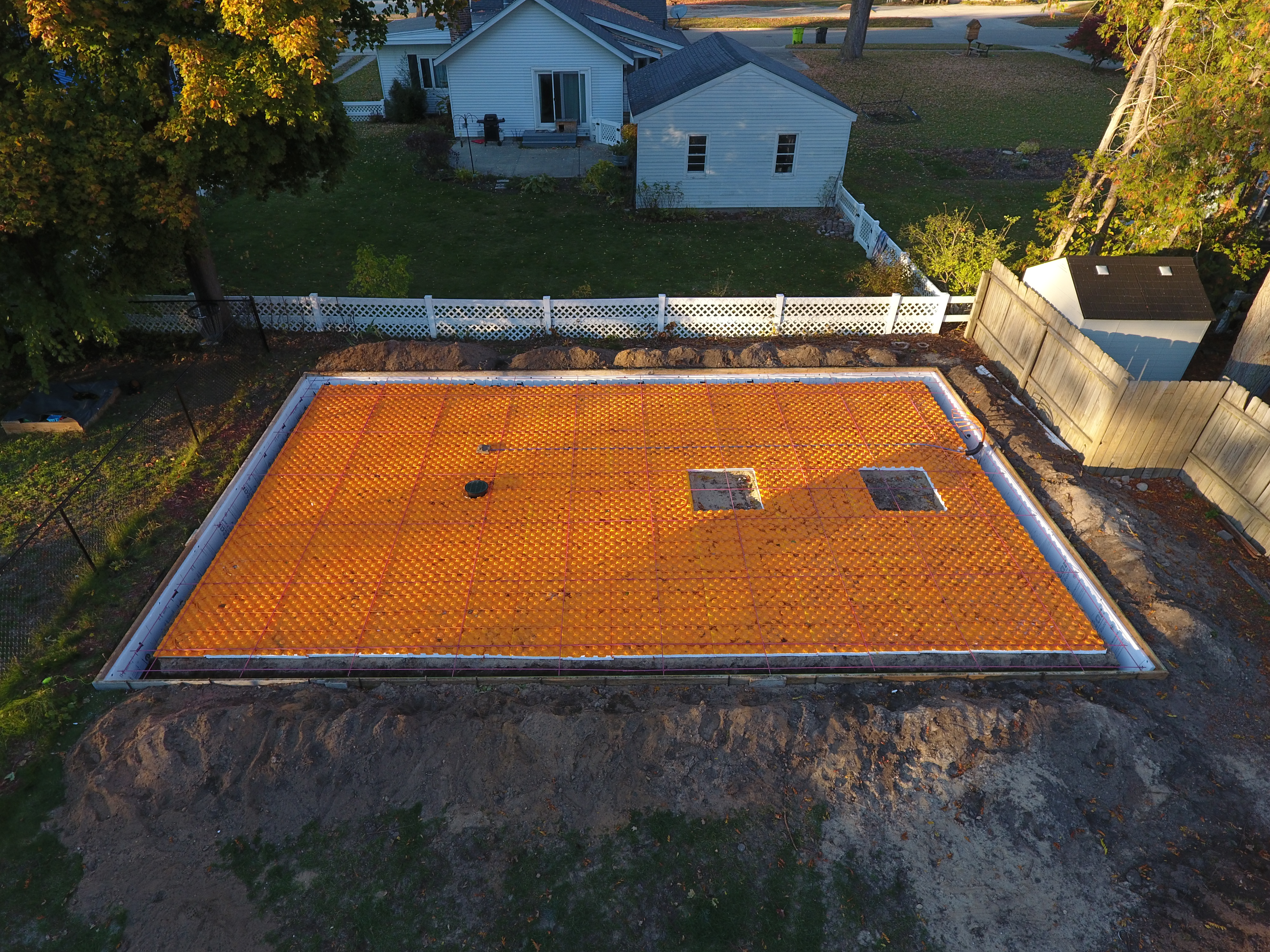

This aerial image provides a comprehensive view of the completed exterior insulation and fiberglass rebar installation, showing the full scope of the foundation preparation work.
Visible Elements
- Complete Insulation System:
- Orange Creatherm interior base insulation throughout
- Exterior perimeter insulation extending outward
- Multi-layer thermal protection system
- Professional installation with attention to detail
- Fiberglass Rebar Installation:
- Complete grid coverage across entire slab
- Consistent bar spacing for structural integrity
- Properly tied and secured at intersections
- Elevated to proper height for concrete encapsulation
- Foundation Features:
- 24’ x 40’ rectangular footprint clearly defined
- Two openings for thickened concrete pads (car lift)
- Perimeter forms straight and level
- Radiant heating PEX visible in specific zones
- Construction Quality:
- Clean, organized installation
- No visible defects or gaps in insulation
- Professional-grade workmanship evident
- Site maintained and ready for next phase
Construction Stage
Foundation preparation at completion stage:
- ✓ Base insulation system (Creatherm)
- ✓ Radiant floor heating PEX loops
- ✓ All utility conduits installed
- ✓ Temperature sensor conduit (blue PEX)
- ✓ Exterior perimeter insulation
- ✓ Fiberglass rebar reinforcement complete
- Ready for: Building inspection and concrete pour
