Exterior Slab Insulation and Fiberglass Rebar - Aerial View 5
Photo Details
- Date: October 29, 2025
- Weather: Clear skies, 45-55°F. Excellent conditions for outdoor prep work.
- Phase: Foundation - Exterior slab insulation and fiberglass rebar installation
- Location: 309 E. 7th St., Clare, MI
- View: Aerial drone view
- Equipment: DJI Phantom 4 Pro
Description

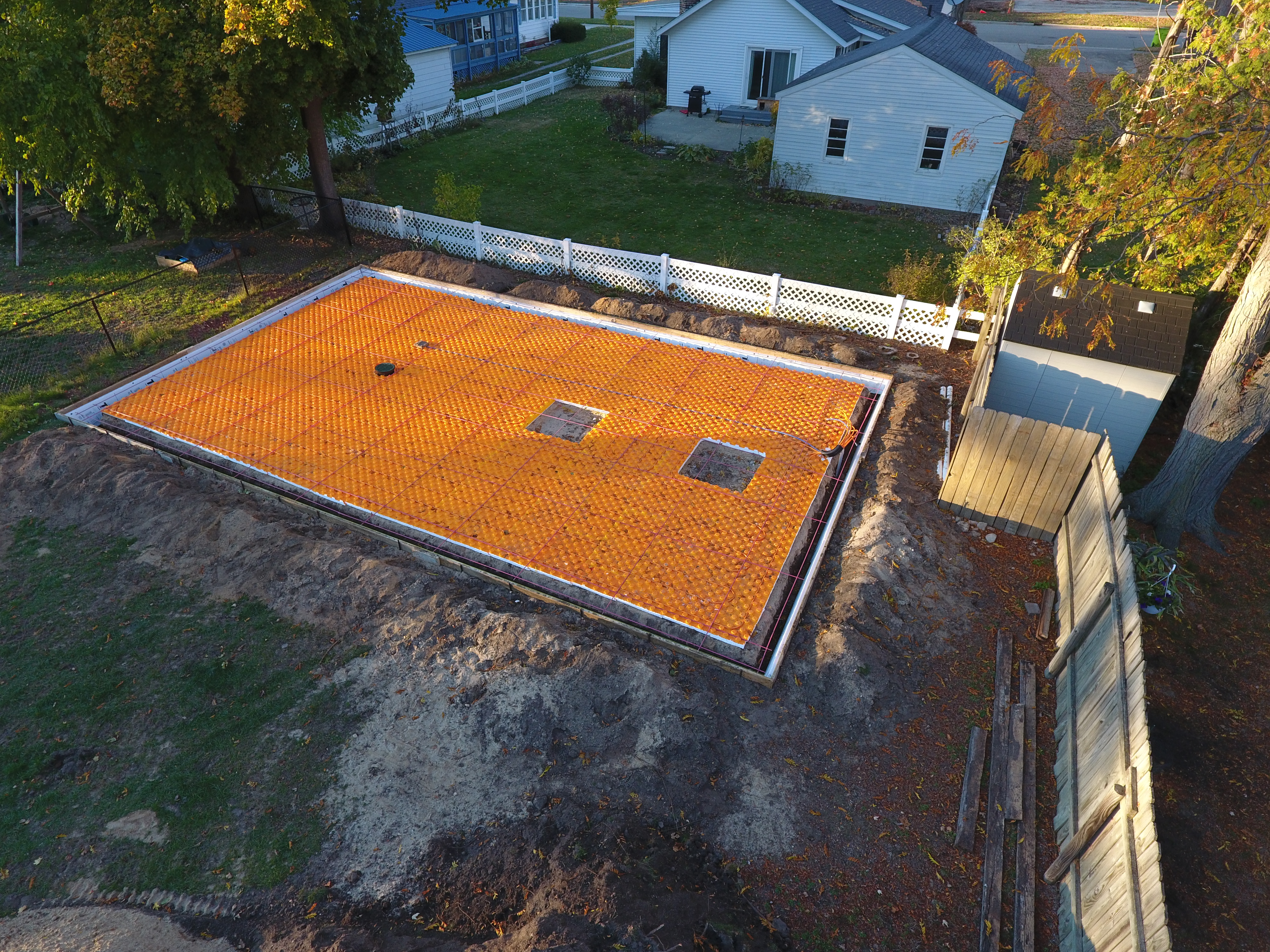

This aerial perspective showcases the exterior slab insulation and fiberglass rebar from another angle, demonstrating the comprehensive foundation preparation system prior to the concrete pour.
Visible Elements
- Thermal Insulation System:
- Bright orange foam insulation around full perimeter
- Creates continuous thermal break at slab edge
- Prevents heat loss and frost penetration
- Professional installation with minimal gaps
- Fiberglass Reinforcement Grid:
- Dense network of fiberglass rebar throughout
- Proper spacing for structural requirements
- Non-corrosive material for long-term durability
- Grid elevated to correct position in future slab thickness
- Foundation Elements:
- Orange Creatherm base insulation clearly visible
- Wooden forms maintaining 24’ x 40’ dimensions
- Openings for thickened pads (2-post lift base)
- Radiant heating PEX loops integrated beneath rebar
- Site Condition:
- Excavated area surrounding foundation
- Equipment access maintained
- Fall season context with colorful foliage
- Site clean and organized
Construction Stage
Foundation system nearly complete and ready for concrete:
- ✓ Creatherm base insulation installed
- ✓ Radiant heating system complete
- ✓ Utility conduits in place
- ✓ Slab sensor conduit installed (blue PEX)
- ✓ Exterior perimeter insulation
- ✓ Fiberglass rebar grid installed and secured
- Next steps: Inspection approval, concrete delivery scheduling
