Under-Slab Insulation Complete - Aerial Overview
Photo Details
- Date: October 22, 2025
- Time: 5:41 PM
- Weather: Light to moderate drizzle, 47-51°F. Wet conditions visible.
- Phase: Foundation - Under-slab insulation installation complete
- Location: 309 E. 7th St., Clare, MI
- View: Aerial/elevated view from lift or ladder
Description

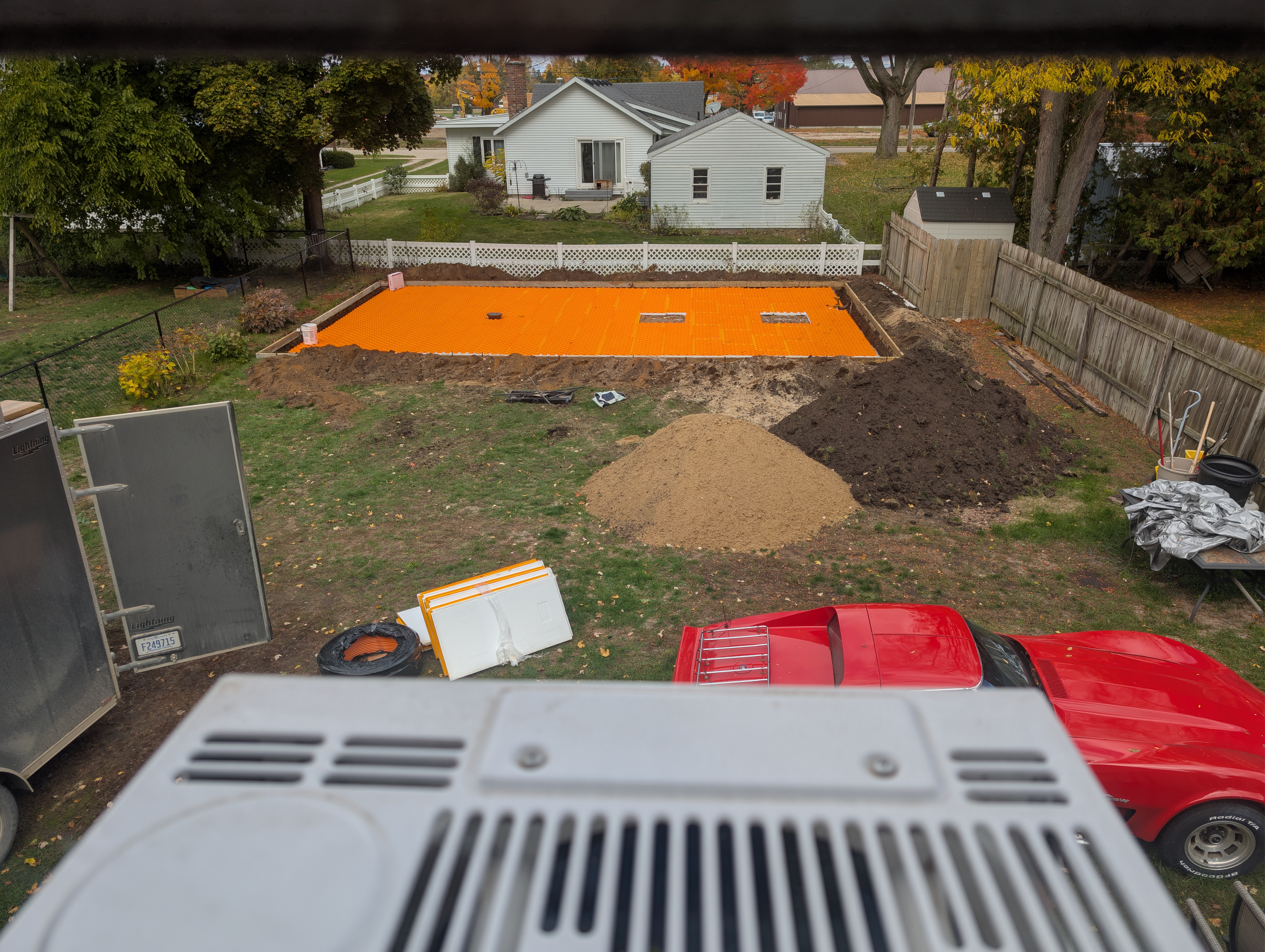

This aerial photo shows the completed installation of the orange Creatherm foam insulation panels covering the entire garage slab area, ready for the next phase of construction.
Visible Elements
- Creatherm Insulation:
- Complete coverage of bright orange foam panels with white stripes
- Panels laid in a systematic pattern across the entire foundation footprint
- Two square openings for thickened concrete pads (future 2-post car lift foundation)
- Appears to be 2” thick panels as specified in contract
- PEX loops visible on left side in mechanical room area for future boiler connections
- Foundation Forms:
- Wooden perimeter forms defining the slab boundaries
- Dark material (likely additional foam) visible along the perimeter edges
- Site Context:
- Red truck cab visible in foreground (likely construction lift truck or equipment)
- Sand/gravel pile on left side of yard
- White house with chain-link fence in background
- Natural wood privacy fence on right side
- Vibrant fall foliage with orange and yellow trees
- Site Condition:
- Disturbed soil and excavated areas around the foundation
- Cleared backyard area prepared for construction
Construction Progress
This image represents a major milestone - the completion of the under-slab insulation installation. The two square openings are for thickened concrete pads that will support the future 2-post car lift installation.
Next Steps
With the insulation complete, the next construction phases will be:
- Install PEX tubing for in-floor radiant heating system on top of foam
- Place rebar or wire mesh for slab reinforcement
- Final utility sleeve installations
- Pour concrete slab and rat wall
