Roof Trusses Corner Detail - Gable End
Photo Details
- Date: December 25, 2025
- Time: 3:22 PM EST
- Weather: Cloudy, 21°F. Cold winter afternoon with snow on ground.
- Phase: Framing (Interior Documentation)
- Location: 309 E. 7th St., Clare, MI
- View: Looking up at northeast corner from main floor interior
Description

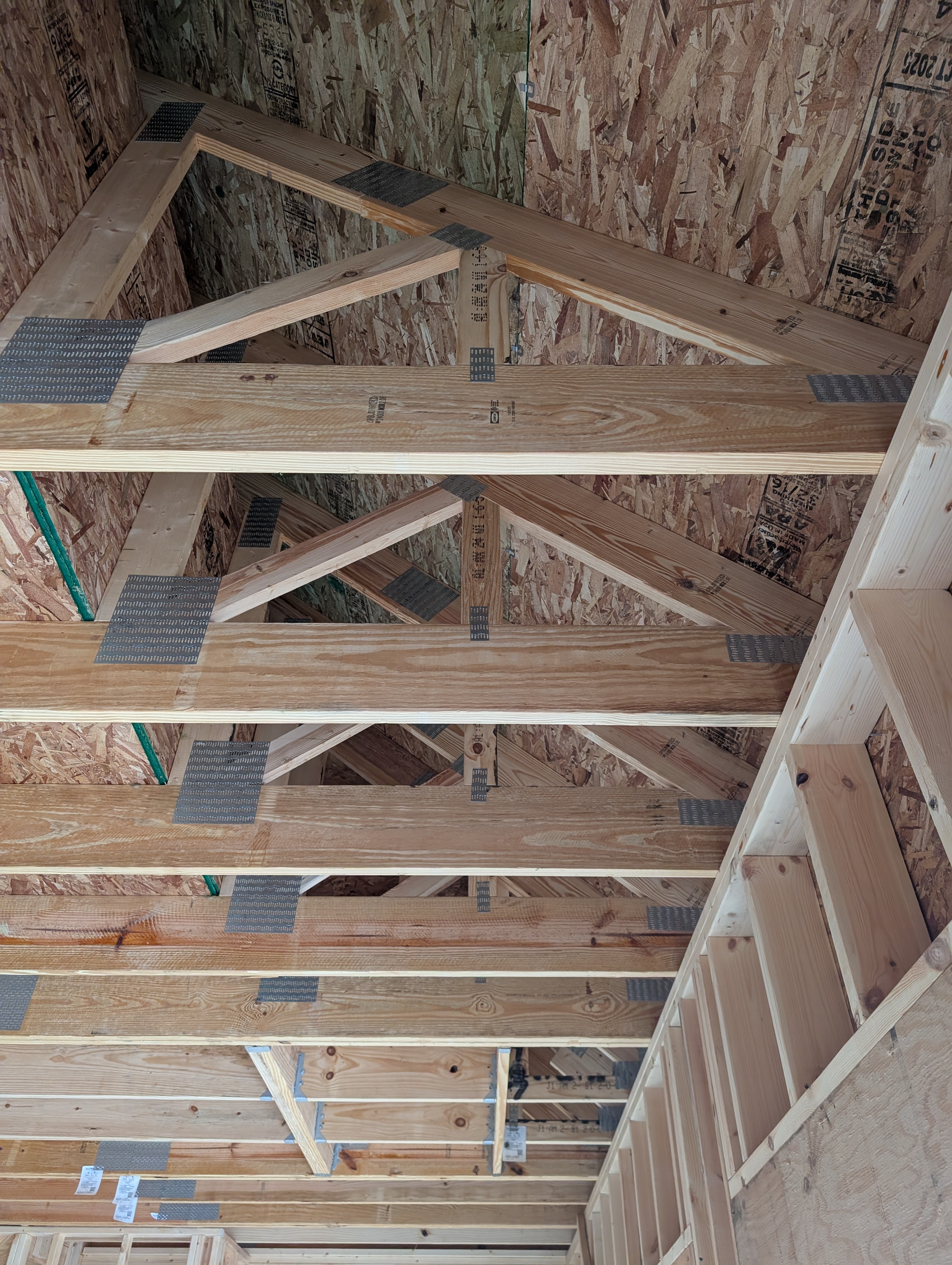

Interior view looking up at the intersection of roof trusses and gable end wall framing. Photo taken for insulation planning purposes to document truss spacing, gusset plate locations, and accessible cavity depths before spray foam or batt installation.
Visible Elements
Truss Structure:
- Multiple parallel roof trusses with standard 24” on-center spacing
- Engineered wood trusses with dimensional lumber chords
- Metal gusset plates (gang-nail plates) securing truss connections
- Green strapping visible for temporary bracing during construction
Gable End Wall:
- OSB sheathing on exterior gable wall
- Vertical studs forming gable triangle
- Intersection of trusses with gable framing
Framing Details:
- Loft floor framing visible at bottom of frame
- Knee wall studs at loft level
- Clear view of truss heel depth at bearing point
Insulation Planning Notes
This photo documents:
- Truss cavity depth available for insulation
- Location of metal plates to work around during foam installation
- Access points for blown or spray insulation
- Gable end air sealing requirements
