Unterminated Romex at Entry Door
Photo Details
- Date: March 31, 2026
- Time: 1:27 PM EDT
- Weather: Light rain, overcast, 58°F.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — Garage interior, entry door area (right bay)
- View: Looking at wall cavity between entry door and garage door opening
Description

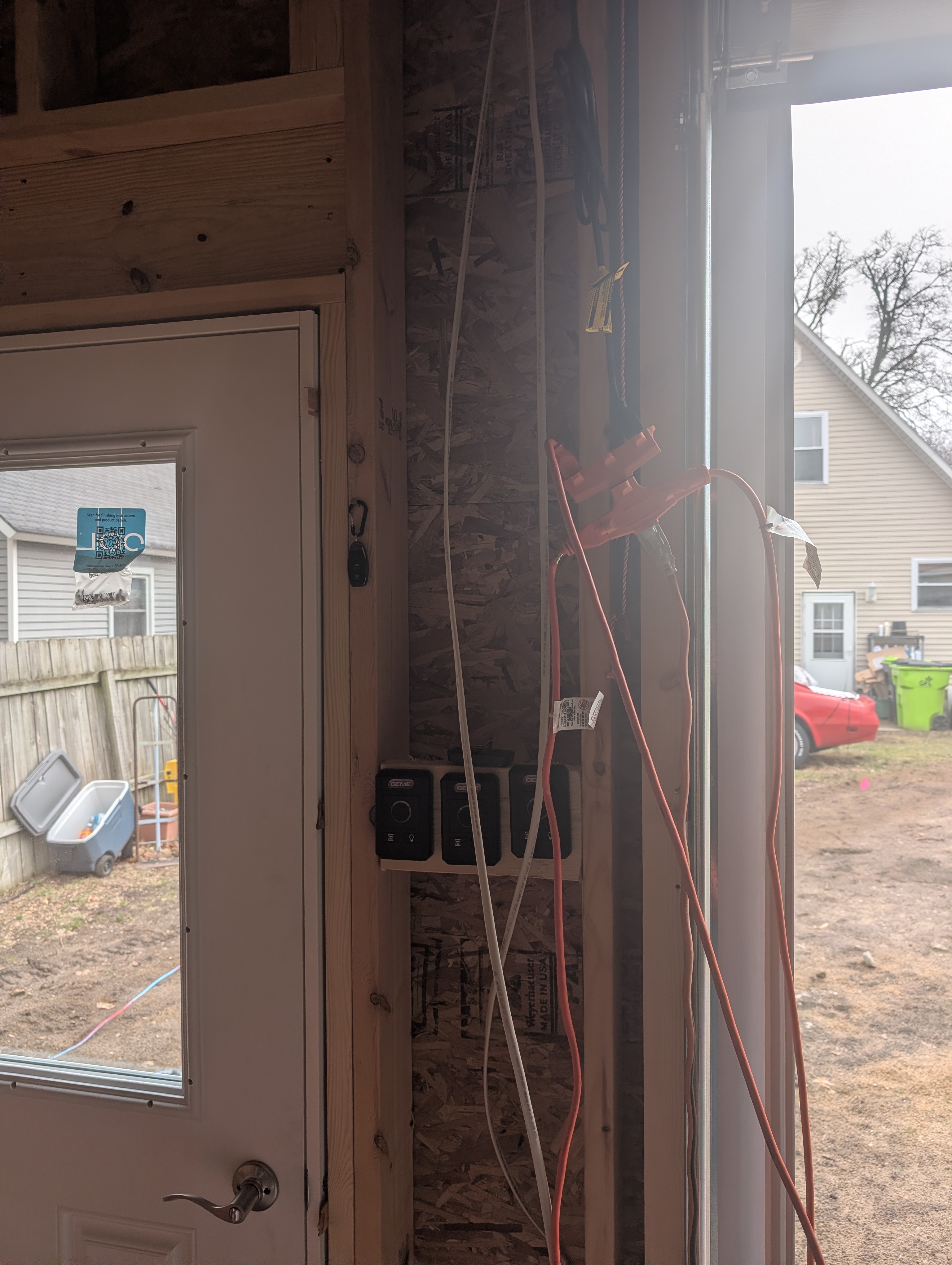

Interior view showing unterminated Romex wiring left by SLS Electric near the entry door and light switch location. Multiple runs of NM-B cable hang from the wall cavity, not yet connected to switches or terminated in junction boxes. Red and white Romex cables are visible along with electrical boxes mounted on the framing. This wiring feeds the soffit lights and the interior convenience outlet that are part of the SLS scope.
Visible Elements
- Unterminated Wiring:
- Multiple Romex (NM-B) cable runs hanging loose in wall cavity
- Red-sheathed cable (likely 12/3 for switch leg or 3-way)
- White-sheathed cable (14/2 or 12/2 for lighting/outlet circuits)
- Cables dangling from above — routed from soffit light locations
- Electrical Boxes:
- Switch box(es) visible on stud wall near entry door
- Outlet boxes mounted at standard height
- Boxes installed but not yet wired
- Wall Cavity:
- Open stud wall between entry door and garage door opening
- Framing lumber and exterior sheathing visible
- View through to exterior (overcast sky visible)
- Entry Door:
- Half-lite entry door visible at left edge
- Door hardware installed
Status Note
This wiring is part of the SLS Electric scope (one interior convenience outlet + one light switch + front soffit lights). The romex has been run but not terminated — completion expected when the electricians return to finish the service installation.
