Generator Inlet Receptacle Close-Up (Open)
Photo Details
- Date: March 31, 2026
- Time: 5:30 PM EDT
- Weather: Overcast, 46°F, light rain earlier.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — garage exterior wall
- View: Close-up of generator inlet with lid open
Description

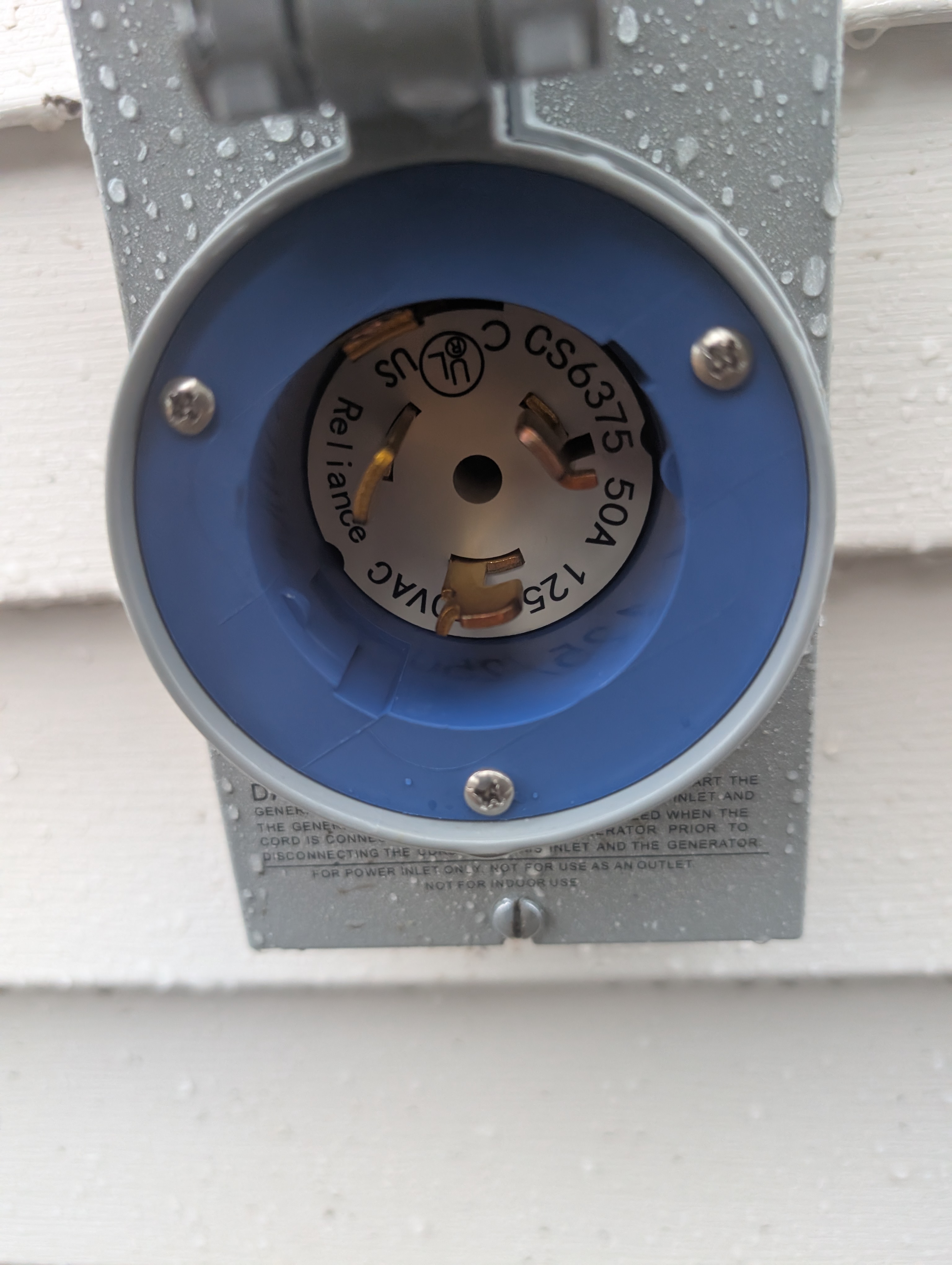

Close-up of the Reliance CS6375 50A 125/250VAC generator inlet receptacle with the weatherproof lid flipped open, revealing the blue face plate and 4-prong twist-lock configuration. Rain droplets are visible on the surface. This inlet was part of the SLS Electric quote as a $725 line item and allows connection of a portable generator to the garage’s electrical system via the transfer switch.
Visible Elements
- Receptacle:
- Reliance CS6375 model
- 50A 125/250VAC rating
- Blue face plate
- 4-prong twist-lock (L14-50) configuration visible
- Recessed mounting for weather protection
- Cover:
- Flip-up weatherproof lid in open position
- Spring-loaded for automatic closure
- Conditions:
- Rain droplets visible on receptacle surface and cover
- Overcast ambient lighting
