Interior Wiring Routing Near Entry Door
Photo Details
- Date: March 31, 2026
- Time: 5:30 PM EDT
- Weather: Overcast, 46°F, light rain earlier.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — garage interior, front wall near entry door
- View: Looking up at wall/ceiling junction showing wire routing
Description

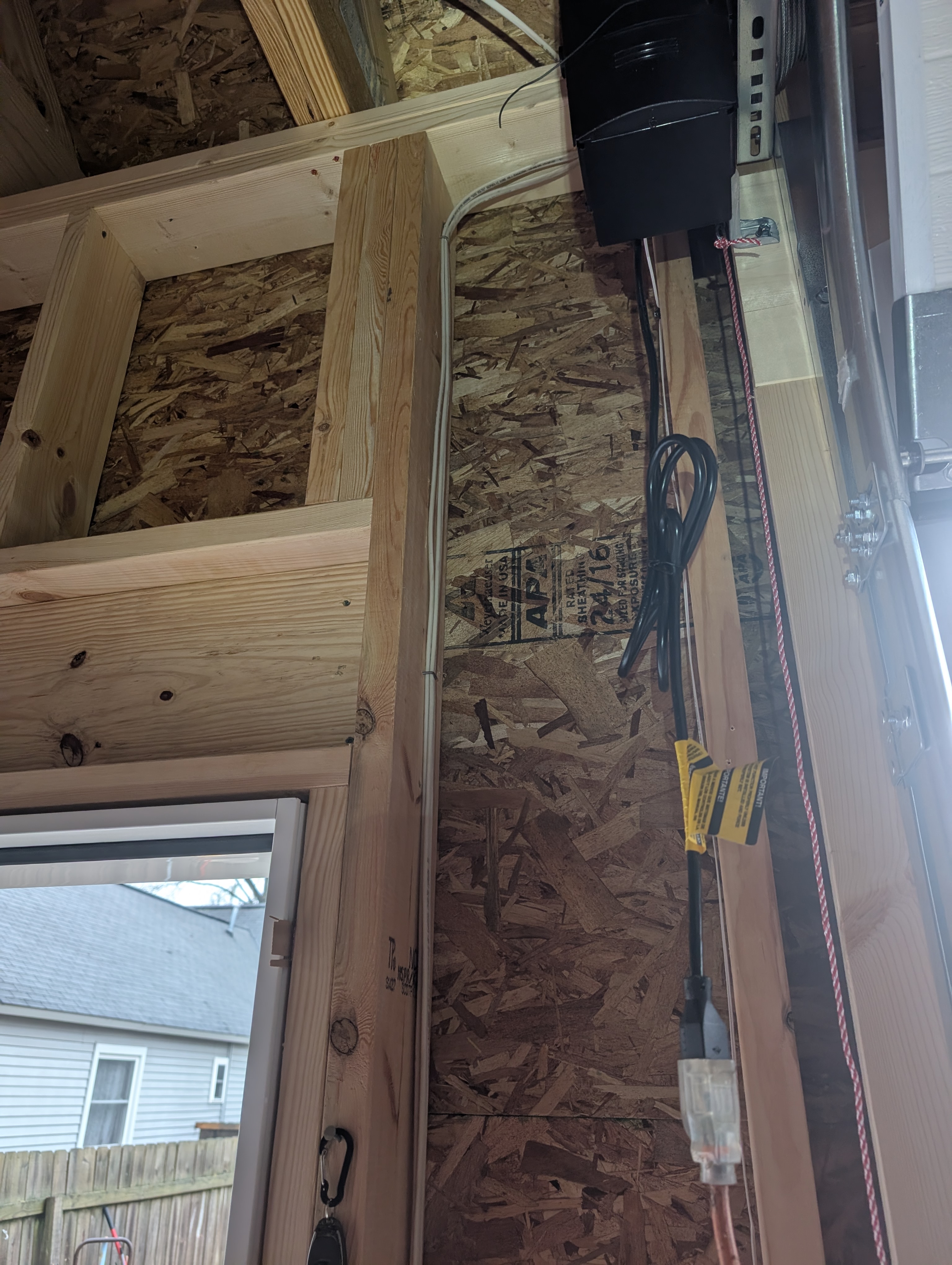

Interior wiring routing near the front entry door of the garage. Romex (NM-B) cable runs along the wall and ceiling framing from the soffit area down toward the switch box location. A metal conduit or raceway is visible running vertically along the wall. A garage door opener unit is partially visible at the top of the frame. This wire routing connects the three front soffit wafer lights to the switch location at the entry door. OSB wall sheathing and framing studs are visible throughout.
Visible Elements
- Wiring:
- Romex (NM-B) cable running along framing members
- Cable routed from soffit area downward toward switch box
- Wire routing for soffit light circuit (three front wafer lights)
- Conduit:
- Metal conduit/raceway running vertically along the wall
- Provides protected pathway for wiring
- Structure:
- OSB wall sheathing
- Exposed framing studs
- Wall/ceiling junction framing
- Equipment:
- Garage door opener unit partially visible at top of frame
- Circuit Purpose:
- Connects three front soffit wafer lights to the entry door switch location
