Conduit Entry Through Slab Below Panel
Photo Details
- Date: March 31, 2026
- Time: 5:31 PM EDT
- Weather: Overcast, 46°F, light rain earlier.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — Garage interior, below panel
- View: Looking down/behind the panel at slab-level conduit penetrations
Description

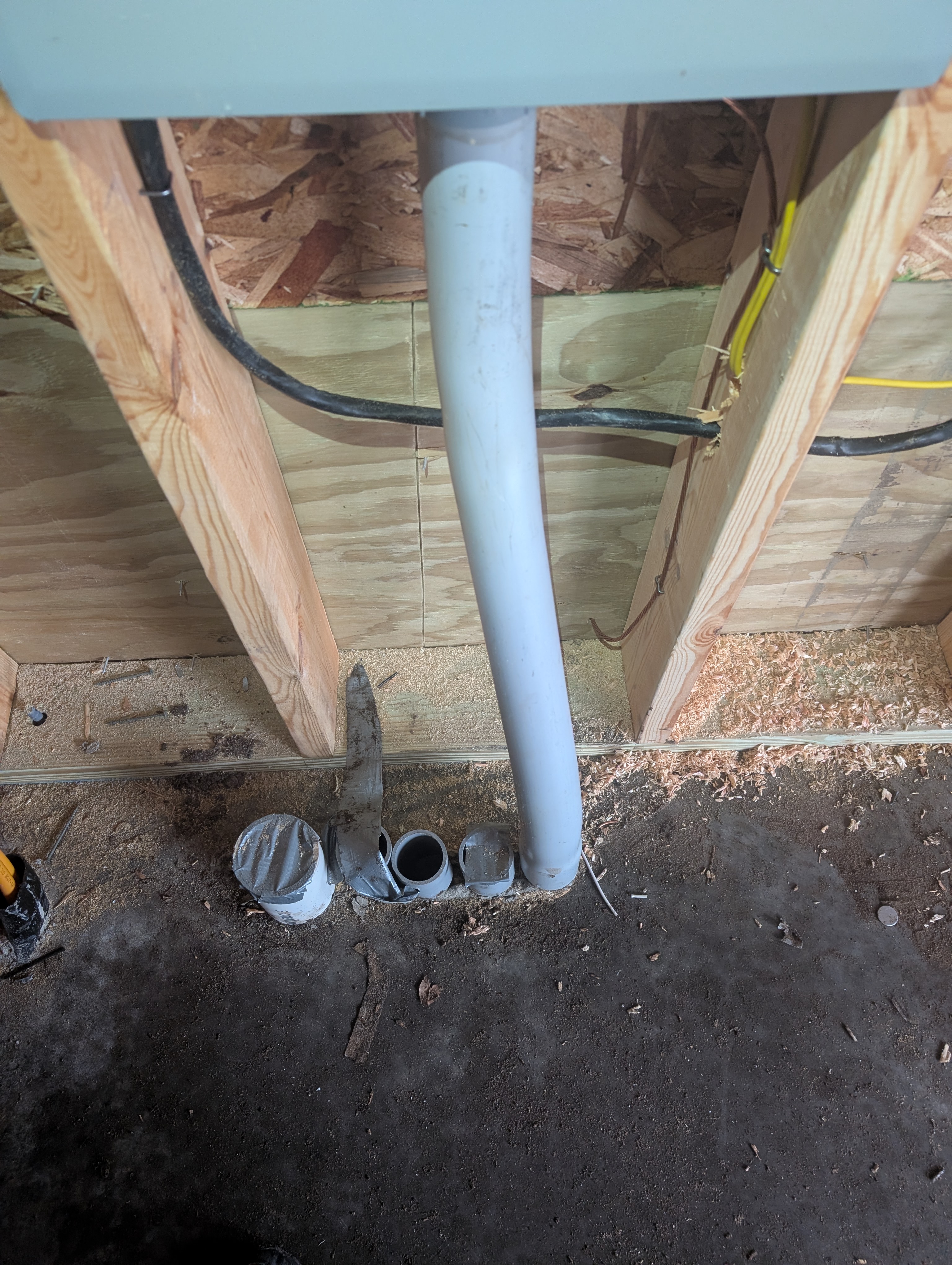

View beneath and behind the garage panel showing conduits coming up through the concrete slab floor. The large white 2” PVC conduit rises from the slab — this is where the two underground 1” conduits merge into a single 2” conduit entering the panel area. Two smaller conduit openings are visible at slab level, plus what appears to be a duct tape-wrapped opening. Yellow cable and black wire are visible in the cavity. The panel mounting board and framing are visible above.
This documents the garage-side conduit connection point where the underground electrical service enters the building through the slab.
Visible Elements
- Conduits:
- Large white 2” PVC conduit rising from concrete slab
- Two smaller conduit openings at slab level
- Duct tape-wrapped opening (temporary seal)
- Wiring in Cavity:
- Yellow NM-B cable
- Black wire
- Context:
- Concrete slab floor with conduit penetrations
- Panel mounting board and framing above
- OSB wall sheathing
