Conduit Connector Detail at House Panel
Photo Details
- Date: March 31, 2026
- Time: 5:47 PM EDT
- Weather: Overcast, 46°F, light rain earlier.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — House basement, panel junction area
- View: Close-up detail of conduit connector at the panel enclosure
Description

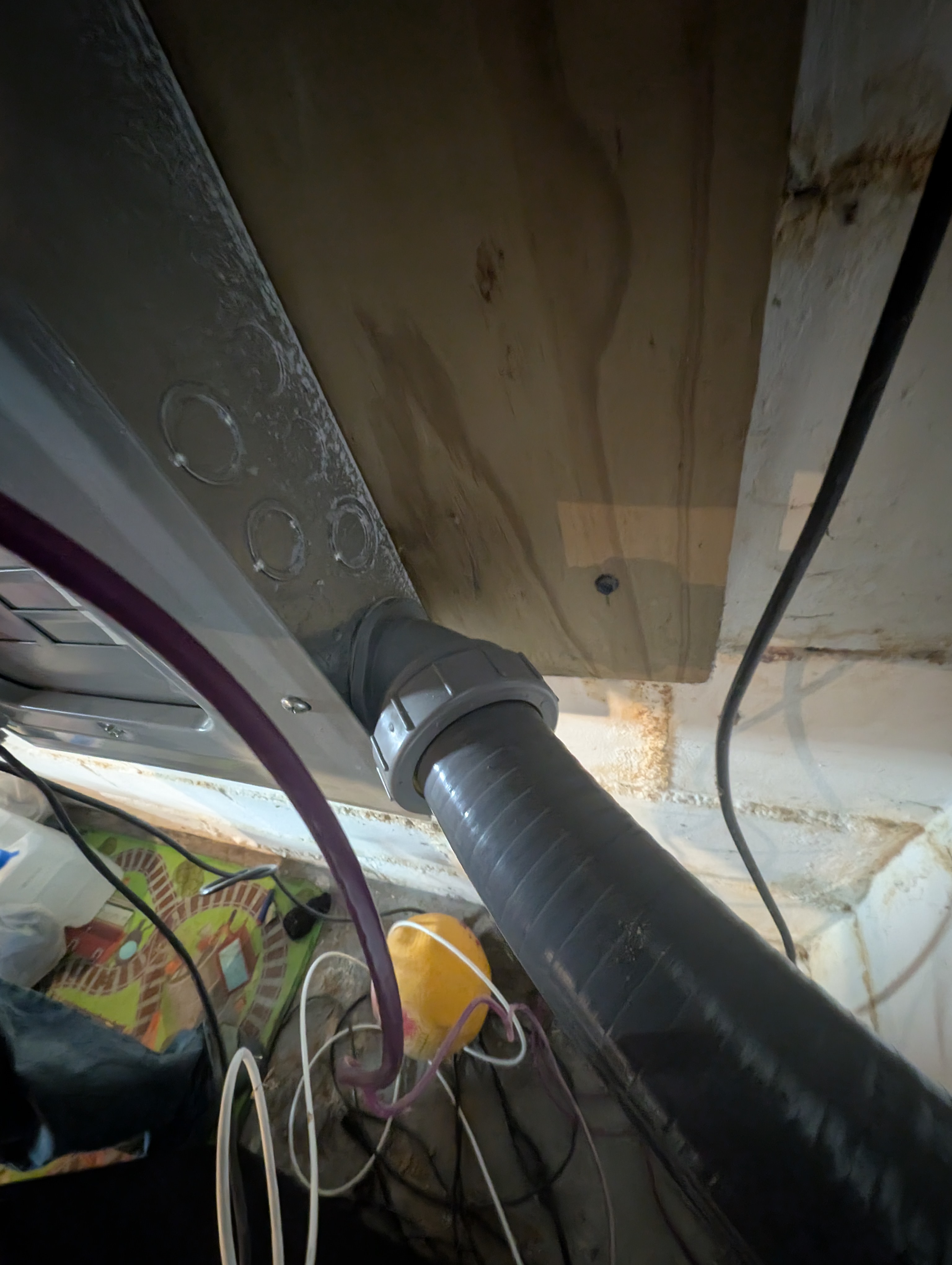

Close-up detail shot of the conduit connector entering the house panel area. A large black flexible conduit is attached to a knockout on a junction box or panel enclosure via a gray compression connector. The conduit runs at an angle from the lower right to the upper left where it connects to the enclosure. A plywood backing board is visible above the connection point. This is a detail shot documenting how the underground feeder enters the house panel infrastructure. The Eaton BRPSF225 lug block kit is staged here for the final connection that will provide the 100A feed to the garage subpanel.
Visible Elements
- Large black flexible conduit
- Gray compression connector securing conduit to the panel knockout
- Junction box or panel enclosure knockout entry point
- Plywood backing board above the connection
- Conduit routing angle from lower right to upper left
- Staging area for the Eaton BRPSF225 lug block kit (final connection pending)
