Garage Construction Project

2026-06-19 - All 15 Garage Floor Lights Lit

2 min read

All 15 Garage Floor Lights Lit — First Full Lighting Test 🎉

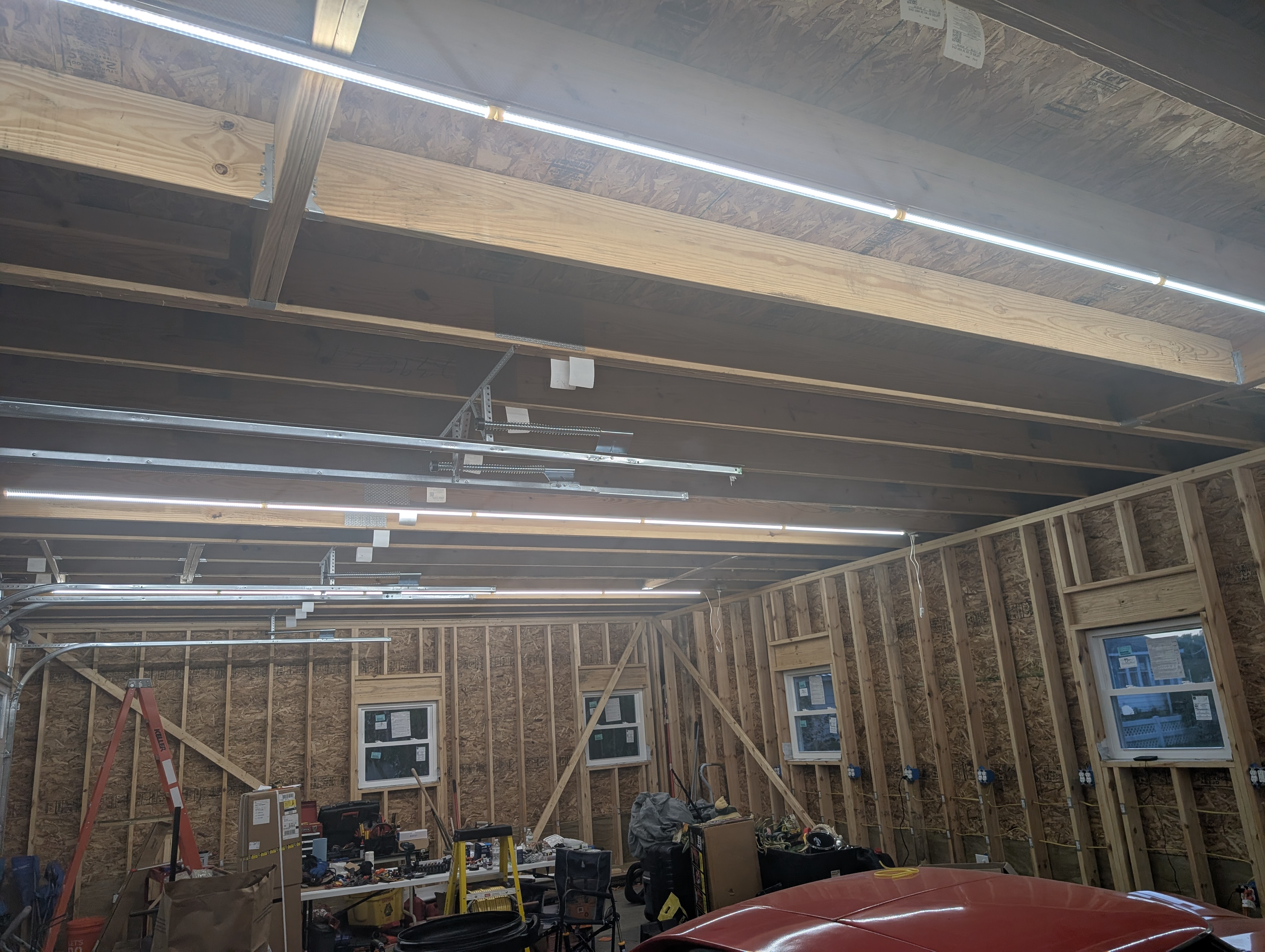

Looking up at the loft-floor trusses with three rows of Barrina LED shop lights lit, brightly illuminating the garage at night

Photo Details

  • Date: June 19, 2026
  • Time: 9:04 PM EDT (filename UTC 2026-06-20 01:04 → −4h rolls back to June 19 local)
  • Weather: Clear June night, ~60°F. Evening session in the still-unconditioned garage; all illumination in this shot is the LEDs, not daylight.
  • Phase: 120V electrical rough-in — interior floor lighting energized
  • Location: 309 E. 7th St., Clare, MI
  • View: Looking up at the loft-floor trusses / ceiling, all three light rows lit

Description

First full lighting test with all 15 garage floor lights lit at once. The Barrina LED shop lights are mounted temporarily to the bottom of the loft-floor trusses until drywall goes up; they’ll be remounted on the finished ceiling later.

Layout: 3 rows of 5 linked lights (15 total). Each row plugs into its own switched ceiling outlet — three ceiling lighting outlets in all — and all three are controlled together by the garage-floor-lights 3-way (the stairwell ↔ entry-door 3-way documented the same day). Flip the switch and all three rows energize at once. (Of the 20 Barrina lights ordered, 15 are up here with 5 in reserve.)

Brightness verdict: the garage is well lit. Conor — the “occasional apprentice” — flipped the switch and described it as “being flashbanged” — surprisingly, almost video-game-grenade bright. For a workshop where you want to see what you’re doing on a vehicle, that’s the target hit.

Visible Elements

  • Three rows of Barrina LED strip lights lit, mounted to the underside of the loft-floor trusses (temporary, pre-drywall)
  • Bright, even illumination across the space at night — output is entirely the LEDs
  • Exposed loft-floor framing / OSB subfloor above the joists
  • Framed perimeter walls with OSB sheathing, windows, and diagonal let-in bracing
  • A ceiling electrical box mid-span; receptacle rough-in boxes on the walls
  • Vehicle, workbench, and tools staged below
