Foundation Insulation - Aerial Drone View
Photo Details
- Date: October 25, 2025
- Weather: Clear morning transitioning to overcast afternoon, 39-53°F. Excellent conditions for aerial photography and documentation.
- Phase: Foundation - Under-slab insulation complete
- Location: 309 E. 7th St., Clare, MI
- View: Direct overhead aerial view from drone
- Equipment: DJI Phantom 4 Pro
Description

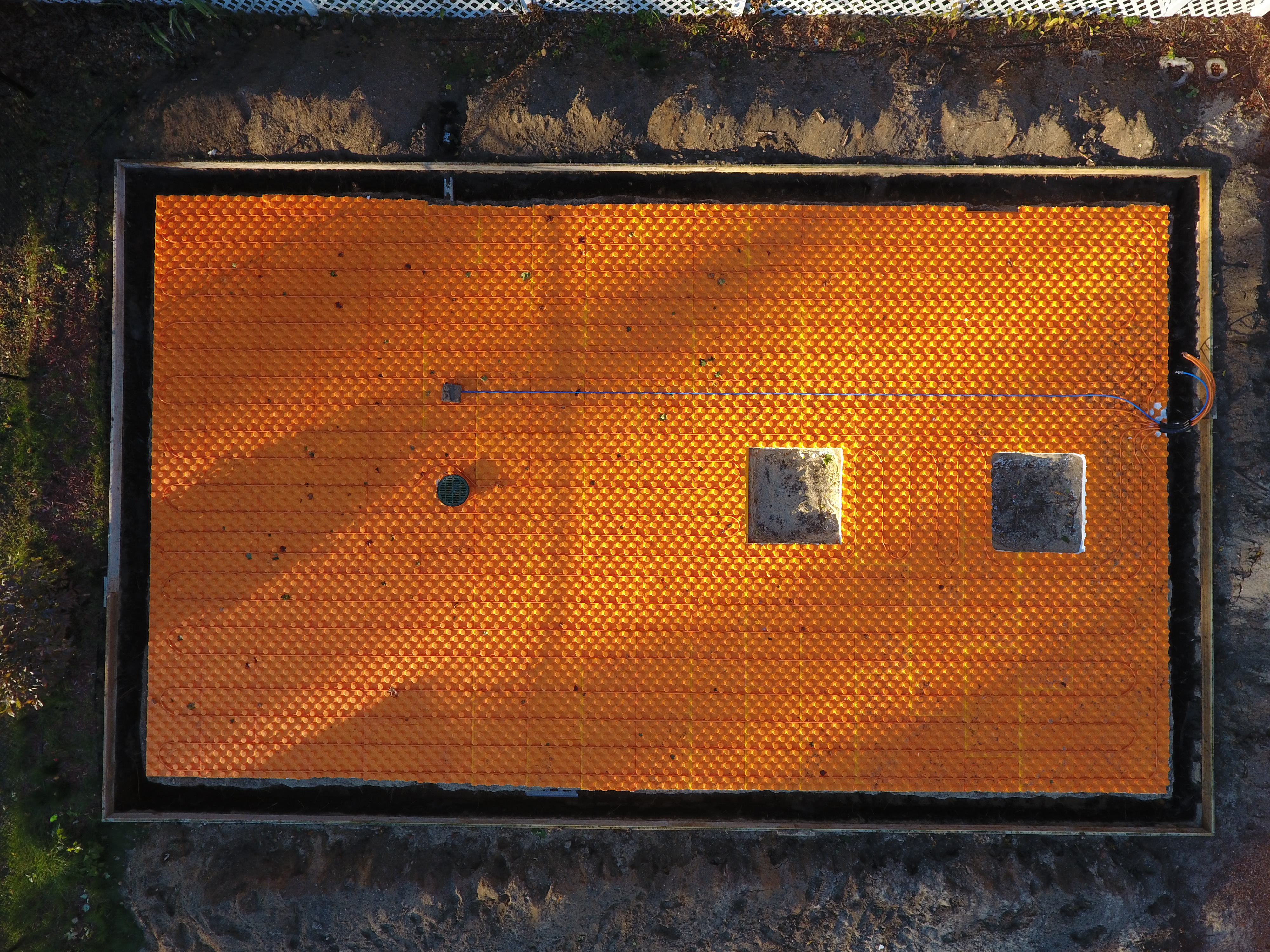

This overhead drone photo captures the completed Creatherm foam insulation installation from directly above, providing a clear view of the foundation layout and insulation pattern.
Visible Elements
- Creatherm Insulation:
- Bright orange foam panels with white stripe pattern
- Complete coverage across the entire 24’ x 40’ foundation footprint
- Two square openings for thickened concrete pads (future 2-post car lift foundation)
- Systematic panel layout clearly visible from overhead
- Blue PEX line visible - future slab temperature sensor conduit installed by owner (see Decisions - Slab Sensor Conduit)
- PEX loops visible on left side in mechanical room area for future boiler connections
- Foundation Forms:
- Dark wooden perimeter forms defining the slab boundaries
- Clean, straight edges showing the rectangular garage footprint
- Additional foam insulation visible along perimeter edges
- Surrounding Area:
- Excavated and disturbed soil around the foundation perimeter
- Fall foliage with vibrant orange and yellow trees in background
- Natural lighting showing texture and detail of insulation surface
Construction Stage
This image documents the foundation ready for the next phase of construction:
- ✓ PEX radiant heating installation (orange PEX loops)
- ✓ Slab temperature sensor conduit (blue PEX line - owner installed)
- Utility conduit placement
- Rebar/wire mesh installation
- Concrete slab pour
