Truss Webbing and Bracing – Left Bay Detail
Photo Details
- Date: December 4, 2025
- Time: 12:13 PM EST
- Weather: Partly sunny, 16°F, NW winds 6-8 mph, 55% humidity. Bright midday conditions with passing clouds and snow cover on site.
- Phase: Framing – roof truss alignment and bracing
- View: Angled front-left perspective highlighting truss plumb and temporary braces
Description

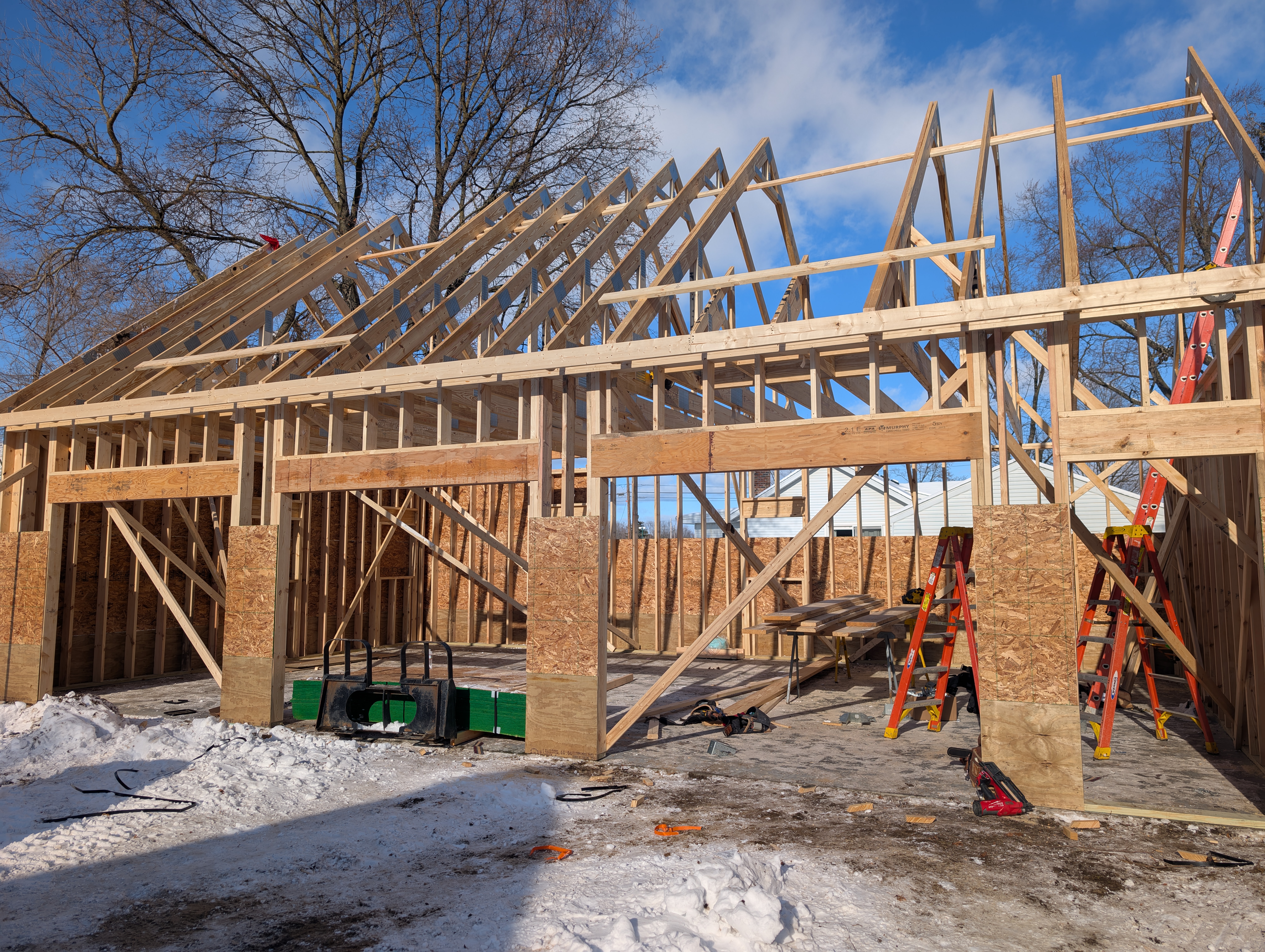

Closer view of the left bay illustrating truss spacing, temporary bracing, and header placement across the garage openings. Ladders and tools are staged for continued roof work.
Visible Elements
- Truss chords with lateral bracing and purlins tying top chords
- Garage door headers with diagonal bracing to slab
- Extension ladders set for roof access on both sides of the opening
- Snow-packed work area with fasteners and tools at grade
- Sunlit truss webs showing consistent spacing toward the ridge
Notes
- Good reference for truss-to-header alignment and bracing layout.
- Captured immediately after the wider front elevation in PXL_20251204_170952235.
