Window Flashing Detail with Protecto Wrap
Photo Details
- Date: December 20, 2025
- Time: 4:11 PM EST
- Weather: Mostly cloudy, 33°F, windy. Snow cover on ground.
- Phase: Building Envelope
- Location: 309 E. 7th St., Clare, MI
- View: Window detail, close-up of flashing
Description

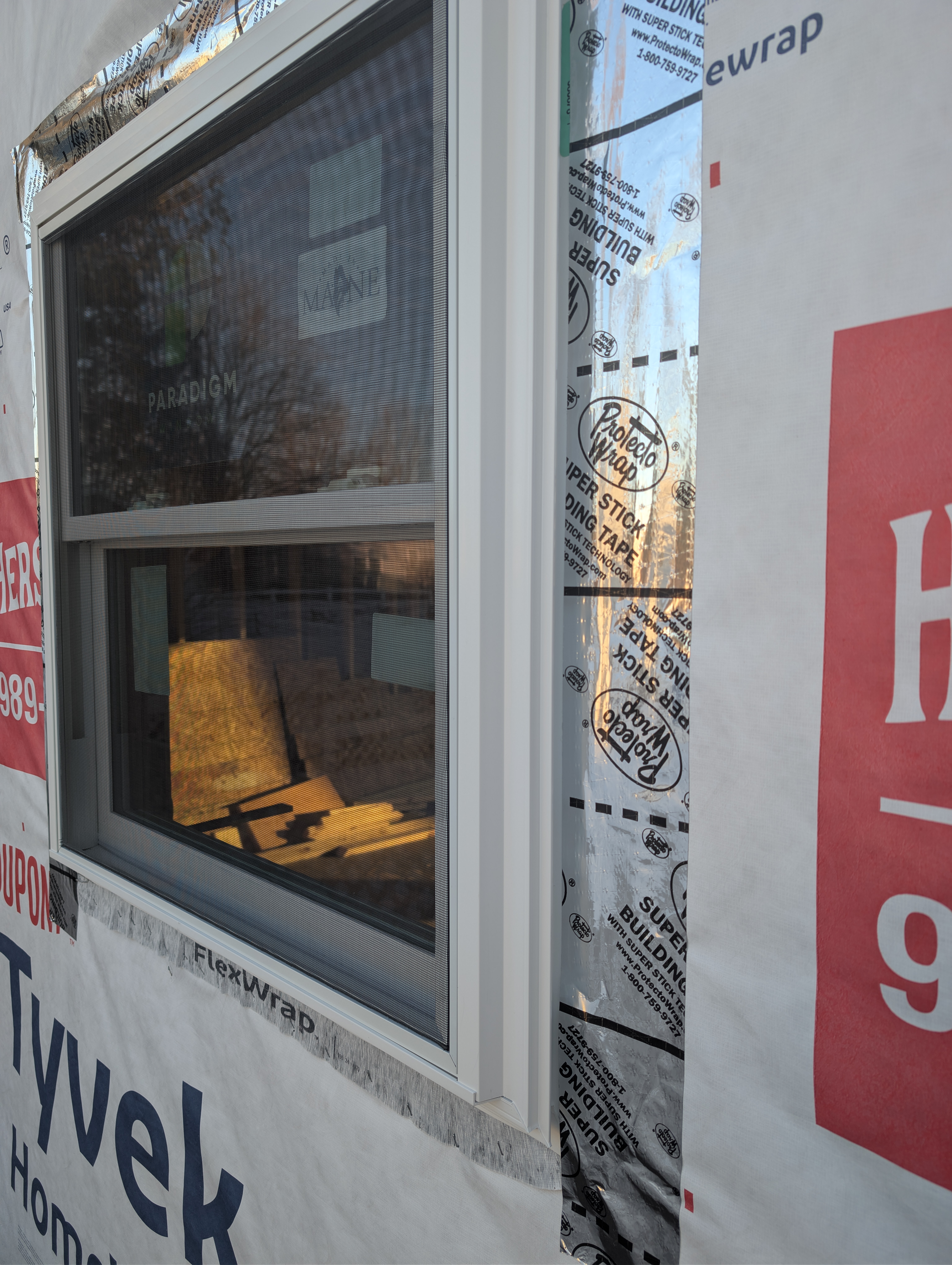

Close-up detail of window installation showing proper flashing integration with house wrap. The window is a white vinyl single-hung unit with flashing tape applied around the frame to seal against water infiltration.
Visible Elements
Window:
- White vinyl single-hung window
- Screen installed in upper sash
- Clear glass with interior OSB sheathing visible through window
- “Paradigm” branding visible on glass (window manufacturer)
Flashing System:
- Protecto Wrap “Super Stick” flashing tape on jamb
- Silver/gray flashing tape visible on right side of frame
- DuPont FlexWrap visible at bottom sill area
- Proper overlap sequence (jambs over sill, head over jambs)
House Wrap Integration:
- Tyvek HomeWrap cut and folded around window opening
- House wrap lapped over head flashing
- Branded stickers visible (Hershberger’s)
Interior View (through glass):
- OSB wall sheathing
- Stacked lumber/materials inside garage
- Construction staging area
Technical Notes
Proper window flashing sequence (as shown):
- Sill pan or FlexWrap at sill (first)
- Jamb flashing overlapping sill flashing
- House wrap cut in inverted Y at top, tucked behind head flashing
- Head flashing tape applied last, lapping over jamb tape
- House wrap flap folded down over head flashing
This installation shows correct sequencing for water management - any water that gets behind the siding will be directed out at the sill rather than into the wall cavity.
