Window Detail with FlexWrap Sill
Photo Details
- Date: December 20, 2025
- Time: 4:11 PM EST
- Weather: Mostly cloudy, 33°F, windy. Snow cover on ground.
- Phase: Building Envelope
- Location: 309 E. 7th St., Clare, MI
- View: Window detail, showing sill flashing
Description

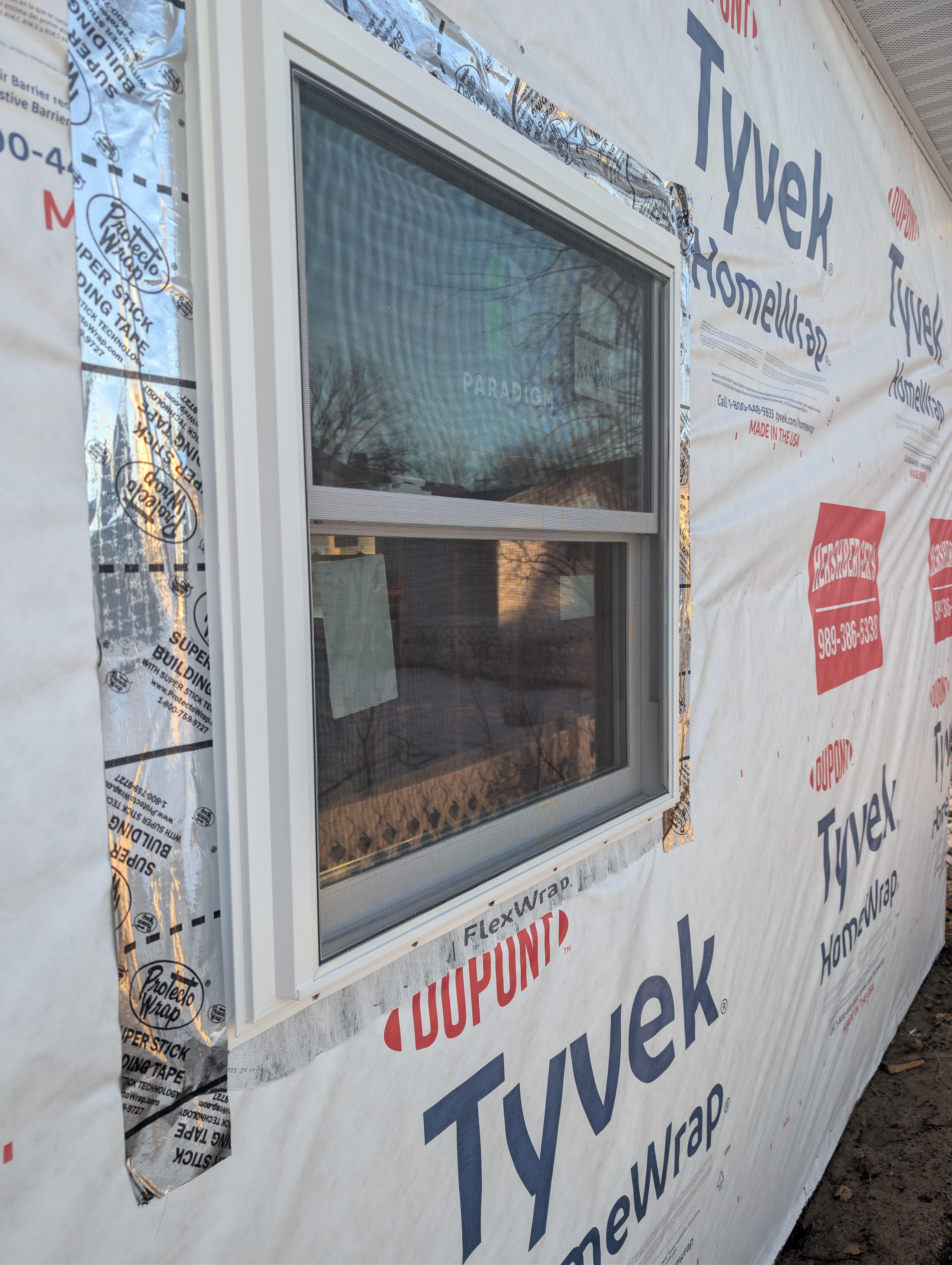

Detail view of a south wall window showing the complete flashing assembly with DuPont FlexWrap at the sill and Protecto Wrap tape on the jambs. This photo documents the weatherproofing quality at window penetrations.
Visible Elements
Window:
- White vinyl single-hung window
- Upper and lower sash visible
- “Paradigm” manufacturer branding on glass
- Screen installed
Flashing System (bottom to top):
- DuPont FlexWrap at sill (orange DuPont label visible)
- Flexible membrane wrapped into rough opening corners
- Protecto Wrap “Super Stick” tape on jambs (silver/printed tape)
- Proper integration with Tyvek house wrap
House Wrap:
- DuPont Tyvek HomeWrap surrounding window
- Multiple Tyvek logos visible
- Clean cuts around window opening
- Contractor sticker (Hershberger’s) visible
Interior View (through glass):
- Interior construction materials
- Wood framing/staging visible
Technical Notes
The FlexWrap at the sill is the most critical flashing component:
- Sill is where most window leaks occur
- FlexWrap’s flexible membrane conforms to corners
- Creates continuous waterproof pan under window
- Directs any infiltrating water back to exterior
The combination of FlexWrap (sill) and straight flashing tape (jambs/head) is a common and effective approach for window weatherproofing.
