Roof Peak and Ridge Beam Detail
Photo Details
- Date: December 25, 2025
- Time: 3:23 PM EST
- Weather: Cloudy, 21°F. Cold winter afternoon with snow on ground.
- Phase: Framing (Interior Documentation)
- Location: 309 E. 7th St., Clare, MI
- View: Looking up at roof peak from loft interior
Description

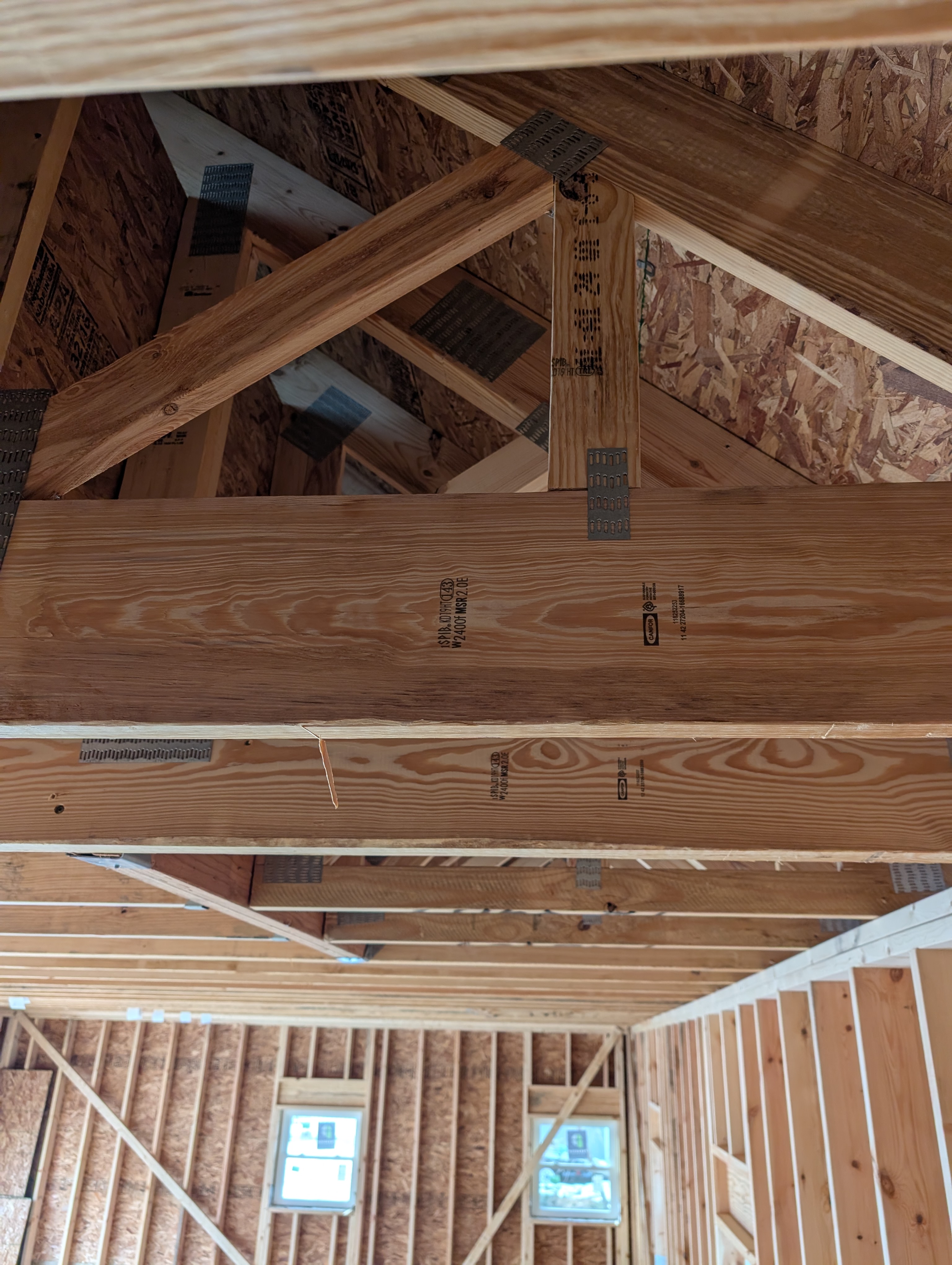

View looking up toward the roof ridge showing the peak connection of opposing truss top chords. Photo documents the ridge area geometry and truss connections for insulation planning, particularly for understanding ventilation requirements at the ridge.
Visible Elements
Ridge Area:
- Truss top chords meeting at roof peak
- Large metal gusset plates securing peak connections
- Ridge beam/board visible along apex
- OSB roof sheathing on both roof planes
Truss Details:
- Engineered lumber with grade stamps visible (SYP markings)
- Multiple gusset plate sizes at different connection points
- Web member diagonal bracing pattern
- Clear spacing between trusses at ridge
Loft Structure Below:
- Loft knee wall framing visible at bottom
- Window in gable end wall visible through framing
- Interior wall structure at loft level
Insulation Planning Notes
Ridge area considerations:
- Continuous ridge vent installed (vented roof assembly)
- Maintain ventilation channel at ridge during insulation
- Baffles may be needed to preserve airflow path
- Peak area accessible for spray foam application
