Loft Ceiling Trusses - Wide View
Photo Details
- Date: December 25, 2025
- Time: 3:25 PM EST
- Weather: Cloudy, 21°F. Cold winter afternoon with snow on ground.
- Phase: Framing (Interior Documentation)
- Location: 309 E. 7th St., Clare, MI
- View: Looking up from loft floor toward roof structure
Description

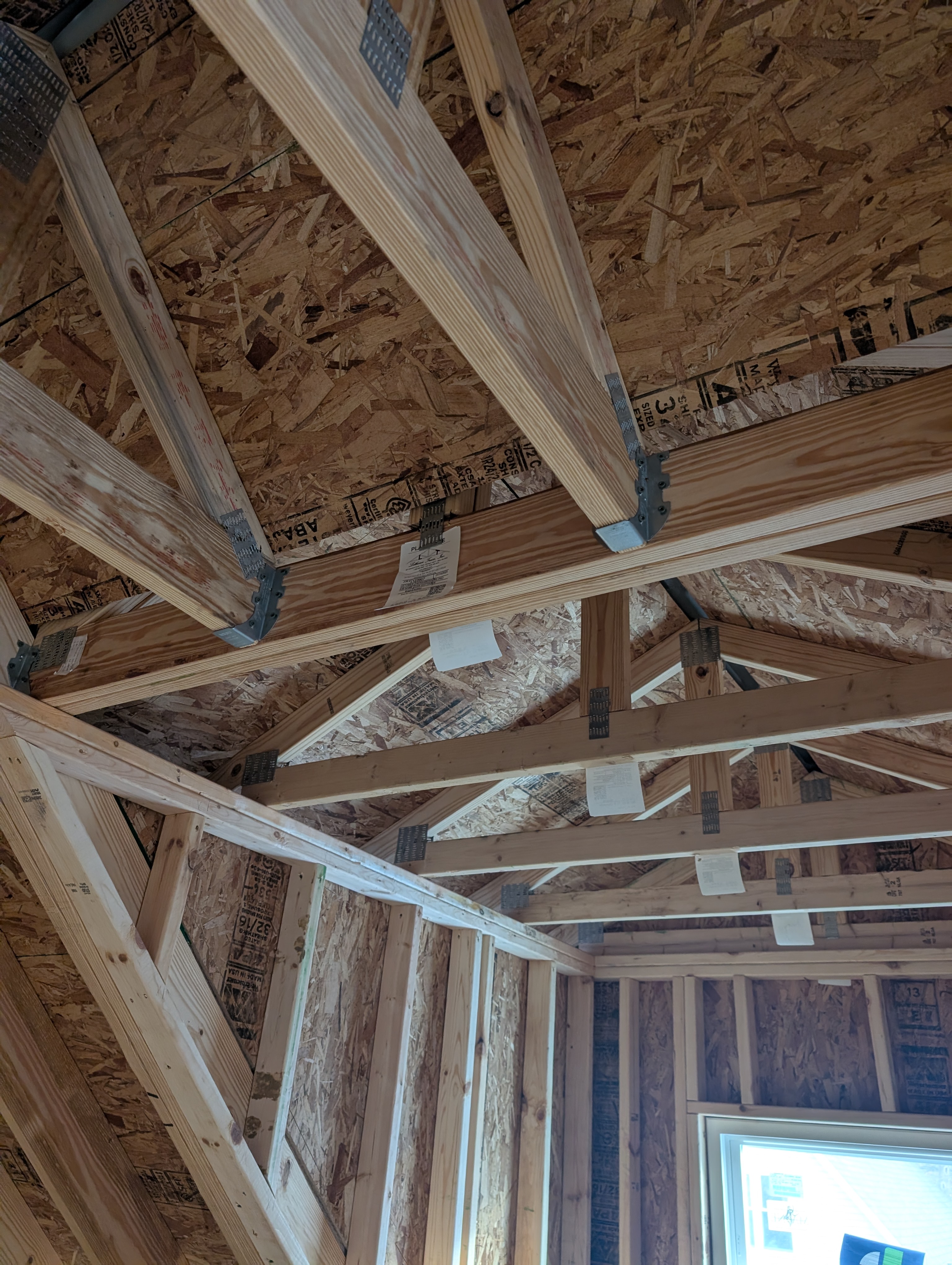

Wide-angle view from the loft floor looking up at the roof truss system. This photo shows the full expanse of trusses that will need insulation above the conditioned loft space. Excellent overview for planning insulation coverage and identifying any special conditions.
Visible Elements
Truss System:
- Multiple roof trusses spanning building width
- Consistent 24” on-center spacing throughout
- Metal gusset plates at all connection points
- Web members creating open triangulated structure
Roof Sheathing:
- OSB sheathing visible between trusses
- Sheathing seams and H-clips visible
- Dark color indicates exterior-grade OSB
Loft Features:
- Knee wall framing at loft perimeter
- Window rough opening visible in exterior wall
- Dormer framing structure visible at one end
Insulation Planning Notes
This comprehensive view shows:
- Total area requiring ceiling insulation in loft
- Open truss bays suitable for blown or spray insulation
- Knee wall areas requiring separate insulation approach
- Access considerations for insulation installation crew
Insulation Strategy Options
- Spray Foam (Closed-cell): Apply directly to underside of roof sheathing; creates air barrier and insulation in one step
- Blown Insulation: Install ventilation baffles, then blow cellulose or fiberglass into truss cavities
- Batt Insulation: Friction-fit batts between trusses (less common for this application)
