Soffit Light - Interior View from Above
Photo Details
- Date: March 31, 2026
- Time: 1:28 PM EDT
- Weather: Light rain, overcast, 58°F.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — Garage interior, above front wall looking into soffit cavity
- View: Looking up/out through soffit framing at installed light fixture from inside
Description

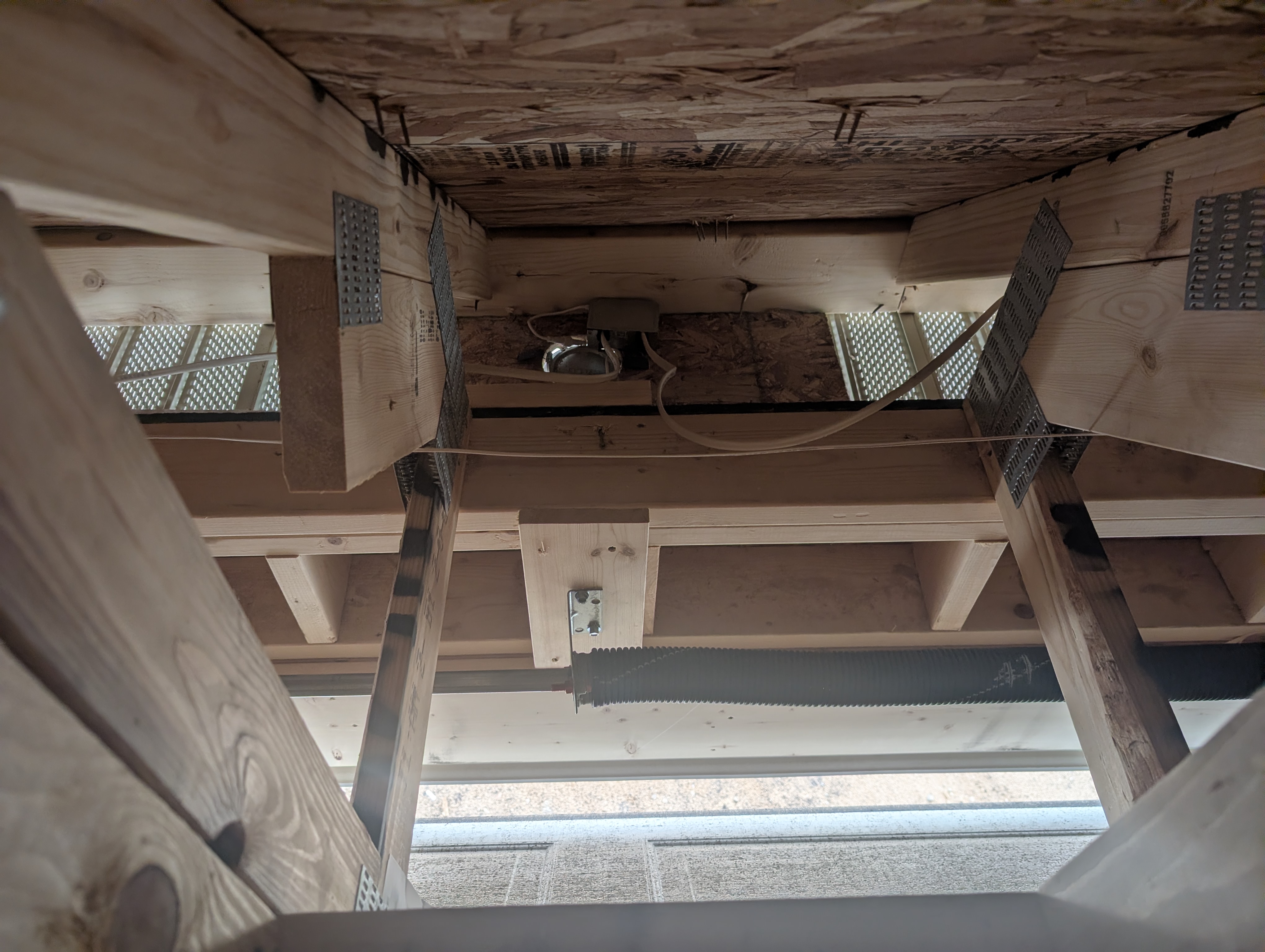

Interior view looking up through the garage front wall framing into the soffit cavity where one of the three recessed wafer lights is installed. The Romex cable feeding the light is visible running along the framing. The light fixture is visible from the backside, mounted in the soffit panel. This perspective shows how the wiring routes from inside the garage wall cavity out to the soffit fixtures.
Visible Elements
- Soffit Light (Backside):
- Round wafer light fixture visible from above/behind
- Mounted through soffit panel
- Junction box and driver visible on back of fixture
- Romex cable connected to fixture junction box
- Framing:
- Roof truss tail and soffit framing members visible
- OSB roof sheathing visible above
- Simpson Strong-Tie connectors/hurricane clips on truss connections
- Bird blocking between trusses
- Wiring:
- White Romex (NM-B) cable routed along framing to fixture
- Cable runs from wall cavity area out to soffit
- Not yet terminated at switch location inside garage
- Daylight:
- Light entering through soffit vents
- Overcast sky visible through gaps
