Soffit Light Wiring - Close-Up
Photo Details
- Date: March 31, 2026
- Time: 1:28 PM EDT
- Weather: Light rain, overcast, 58°F.
- Phase: Electrical Service Installation
- Location: 309 E. 7th St., Clare, MI — Garage interior, soffit cavity close-up
- View: Close-up of soffit light junction box and Romex routing from inside
Description

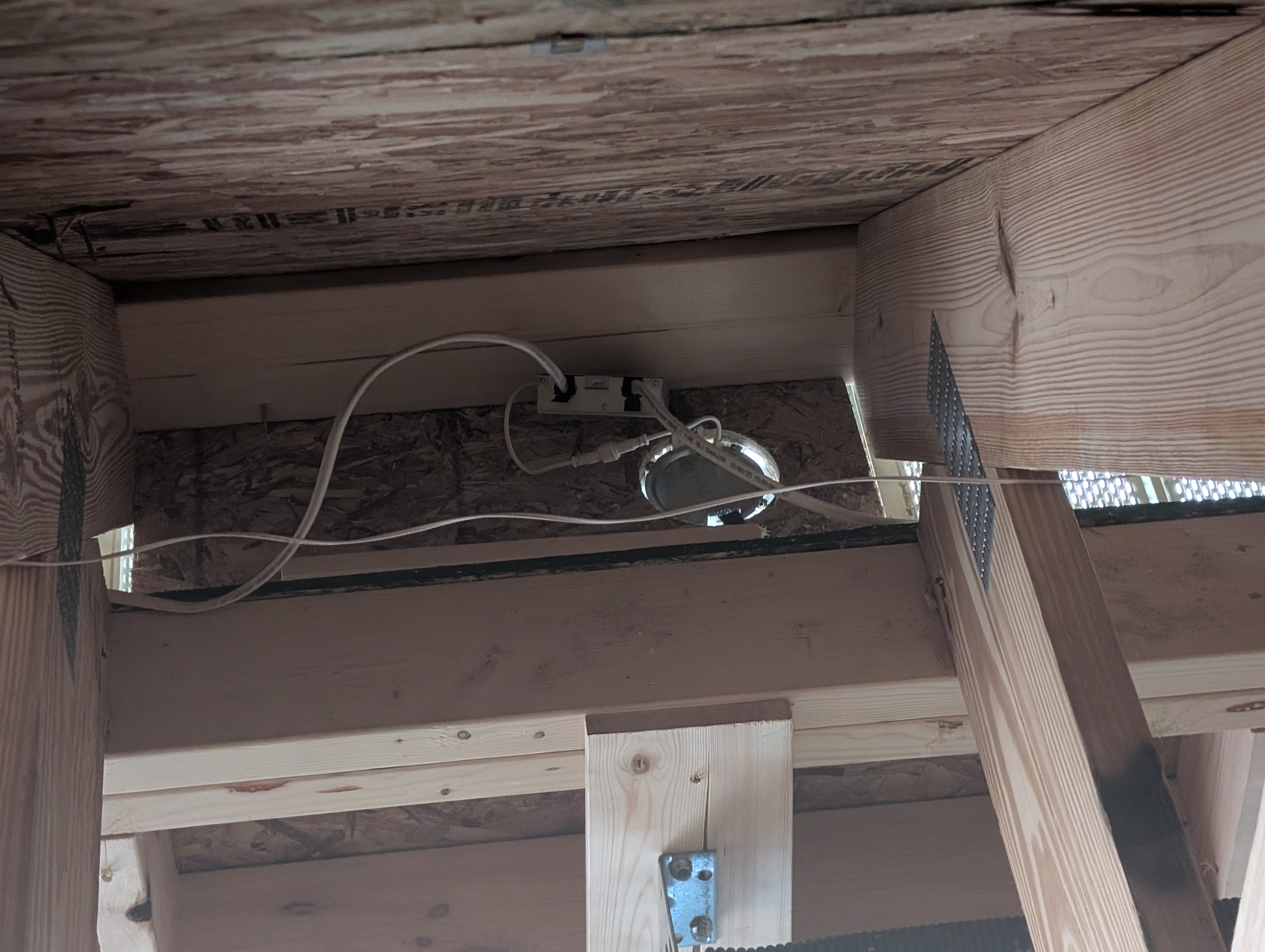

Close-up view of one of the front soffit recessed lights from the interior/backside, showing the fixture junction box, driver housing, and Romex cable connection. The wiring route from the wall cavity to the fixture is clearly visible. This is one of the three wafer-style LED fixtures installed by SLS Electric as part of their scope.
Visible Elements
- Light Fixture (Backside):
- Round LED wafer light driver/junction box
- Romex cable entering junction box via cable clamp
- Spring clips visible for mounting in soffit cutout
- Wiring:
- White Romex (NM-B) cable routed along framing
- Cable appears to be 14/2 (standard for lighting circuit)
- Secure routing along wood framing members
- Framing Context:
- Soffit framing and blocking members
- OSB roof sheathing above
- Daylight visible through soffit vent perforations
